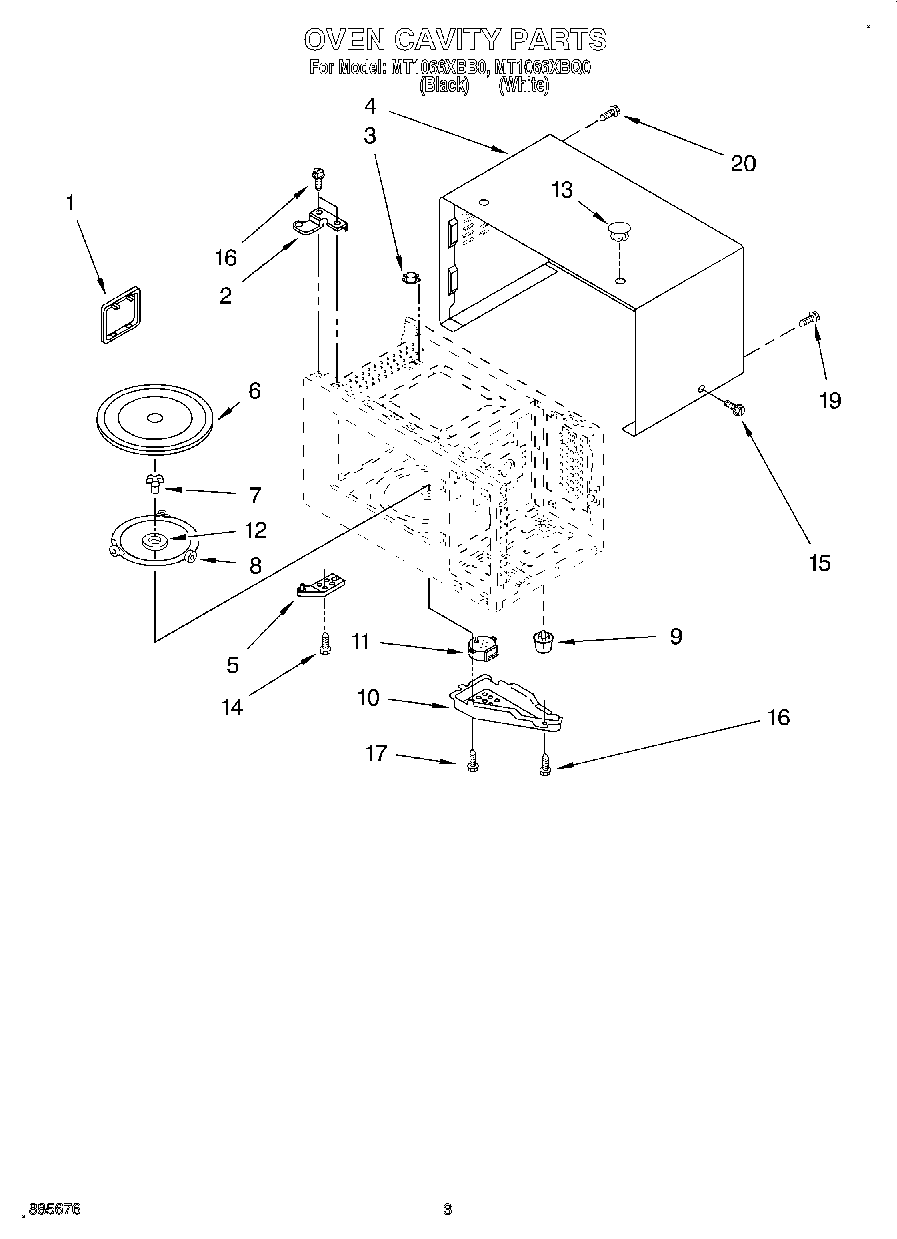

MT1066XBB0 03 – OVEN CAVITY

Products

PositionProduct
1Canopy
2Plate, Hinge
3Thermostat
4Outer Case (White Model)
4Outer Case (Black Model)
5Plate, Hinge
6Tray, Glass
7Shaft, Turn Table
8Rotating Ring Ass`y
9Leg (4)
10Cover, Motor
11Motor, Synchronous
12Washer, Shaft
13Mounting Cap (White (4))
13Mounting Cap (Black (4))
14Special Screw (2)
15Screw
164344826 Whirlpool Refrigerator Screw
17Screw
19W11380570 Whirlpool Microwave Screw
19Screw (White Model)
20Screw
