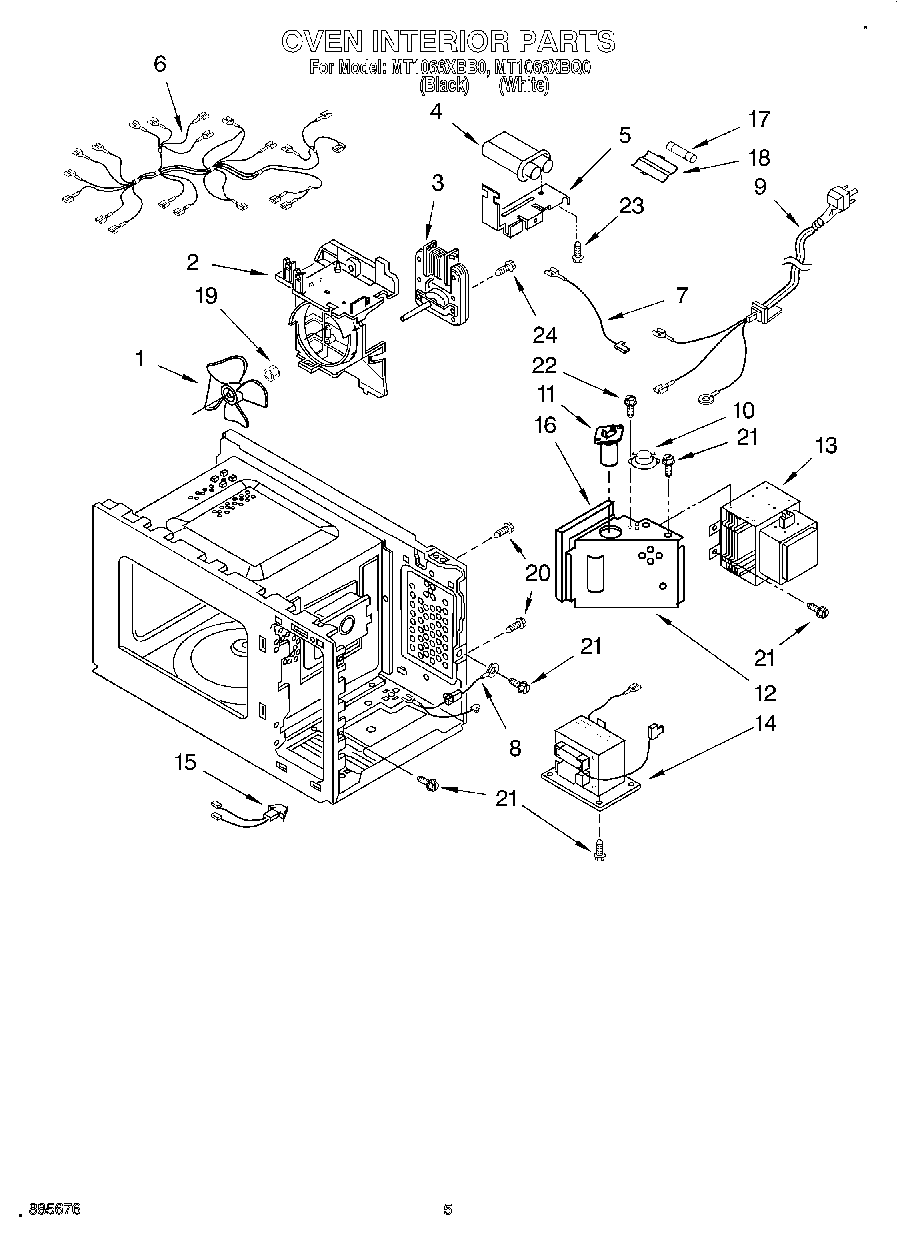

MT1066XBB0 05 – OVEN INTERIOR, LITERATURE

Products

Position	Product
	Cooking Guide Label
	Tech Sheet
	Use & Care Guide
1	8184292 Whirlpool Microwave Fan Blade
2	Guide, Suction
3	Motor, Fan
4	H.V. Capacitor
5	Bracket, H.V.C.
6	Lead Wire
7	H.V. Cable
8	H.V. Diode Cable
9	Cord, Power
10	Thermostat
11	Lamp, Baseless
12	Duct, Air
13	Magnetron
14	H.V. Transformer
15	Leadwire Ass`y
16	Cushion
17	Fuse
18	Fuse Cap
19	Nut
20	Special Screw (2)
21	4344826 Whirlpool Refrigerator Screw
22	Screw
23	Screw
24	Screw
