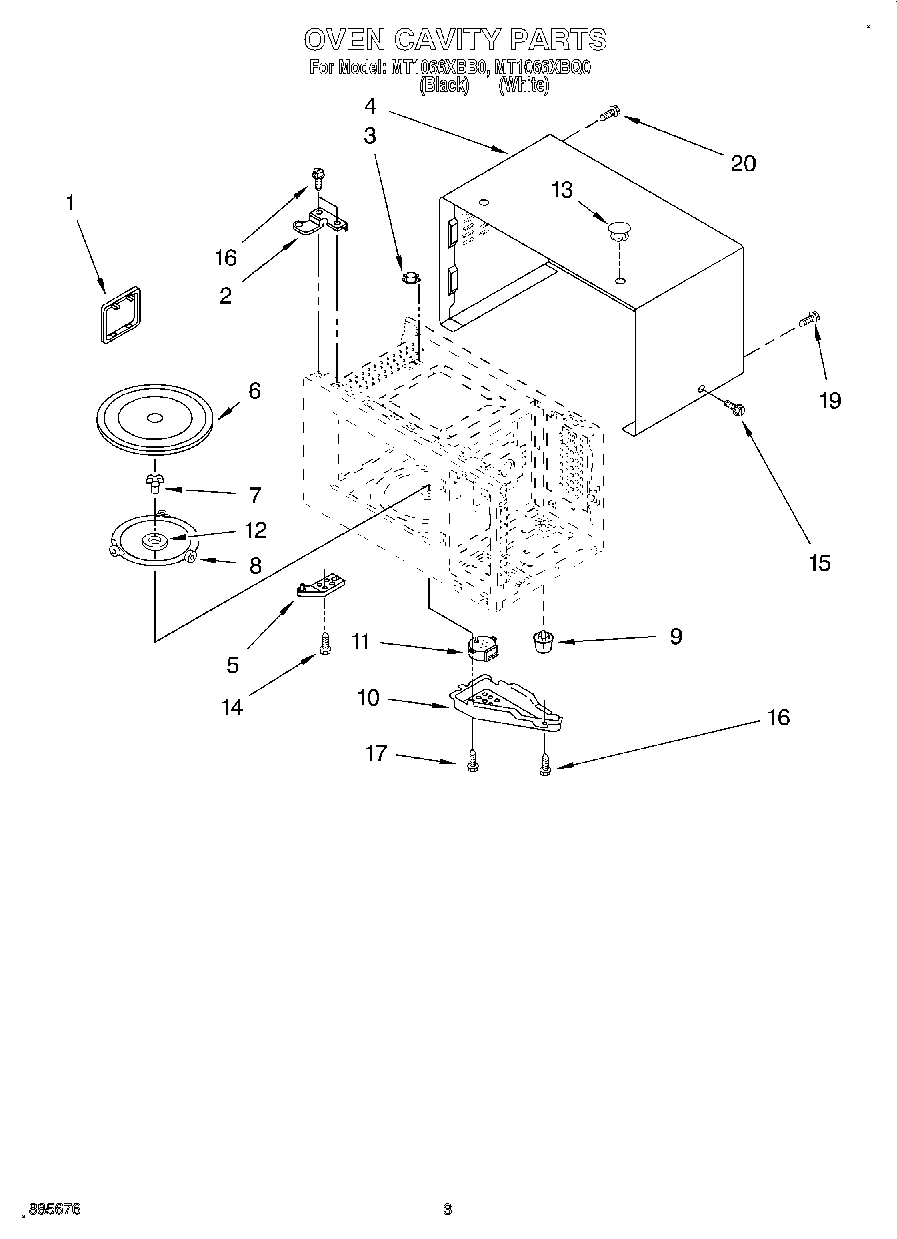

MT1066XBQ0 03 – OVEN CAVITY

Products

Position	Product
1	Canopy
2	Plate, Hinge
3	Thermostat
4	Outer Case (White Model)
4	Outer Case (Black Model)
5	Plate, Hinge
6	Tray, Glass
7	Shaft, Turn Table
8	Rotating Ring Ass`y
9	Leg (4)
10	Cover, Motor
11	Motor, Synchronous
12	Washer, Shaft
13	Mounting Cap (White (4))
13	Mounting Cap (Black (4))
14	Special Screw (2)
15	Screw
16	4344826 Whirlpool Refrigerator Screw
17	Screw
19	W11380570 Whirlpool Microwave Screw
19	Screw (White Model)
20	Screw
