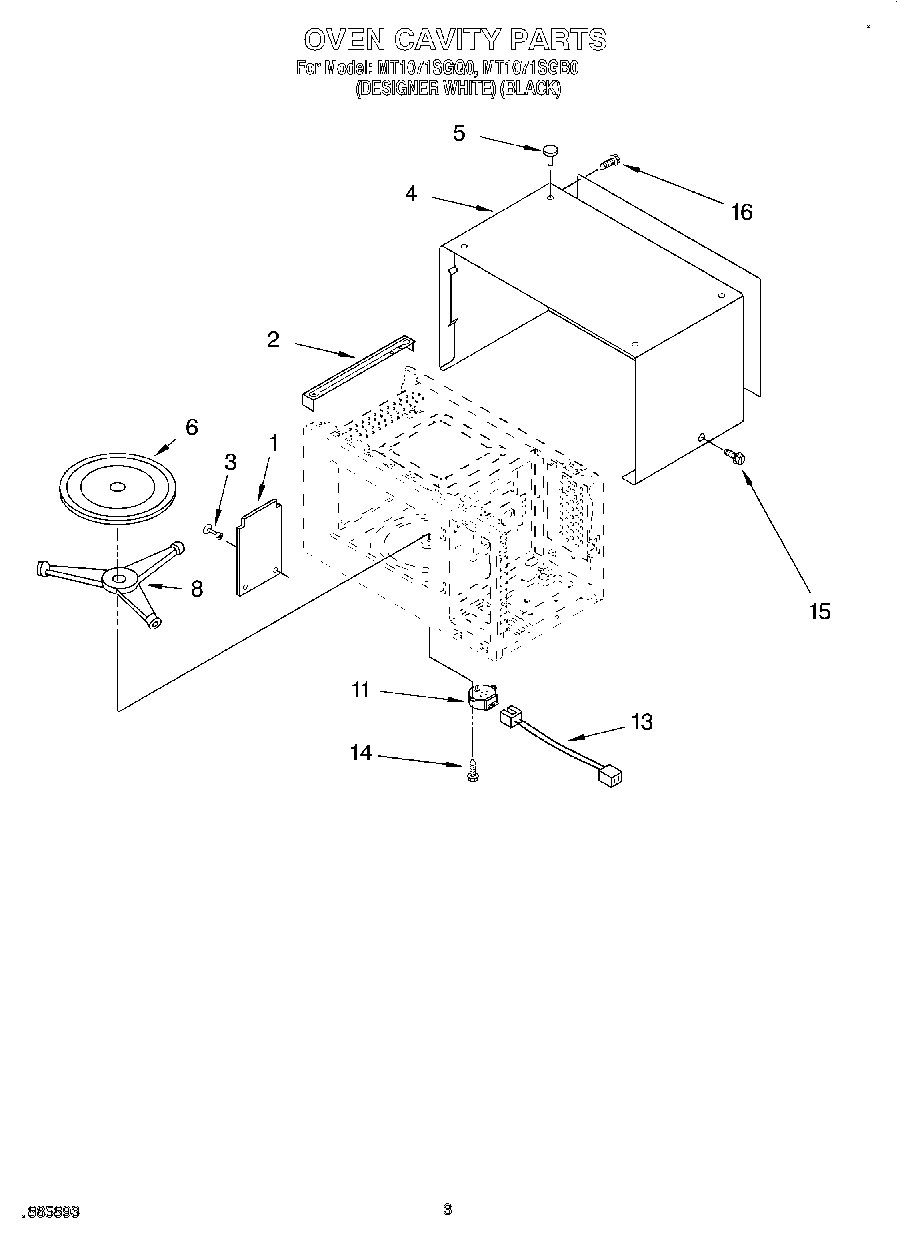

MT1071SGB0 03 – OVEN CAVITY

Written by

Products

Position	Product
1	Canopy
2	UTC Bracket
3	WP4359508 Whirlpool Microwave Stir Rivet
4	Outer Case (Black Model)
4	Outer Case (White Model)
5	Mounting Cap (White (4))
5	Mounting Cap (Black (4))
6	Tray, Glass
8	Turntable Support
11	Motor, Synchronous
13	Lead wire assy.
14	Screw
15	W11245710 Whirlpool Refrigerator Screw
16	W11380570 Whirlpool Microwave Screw
