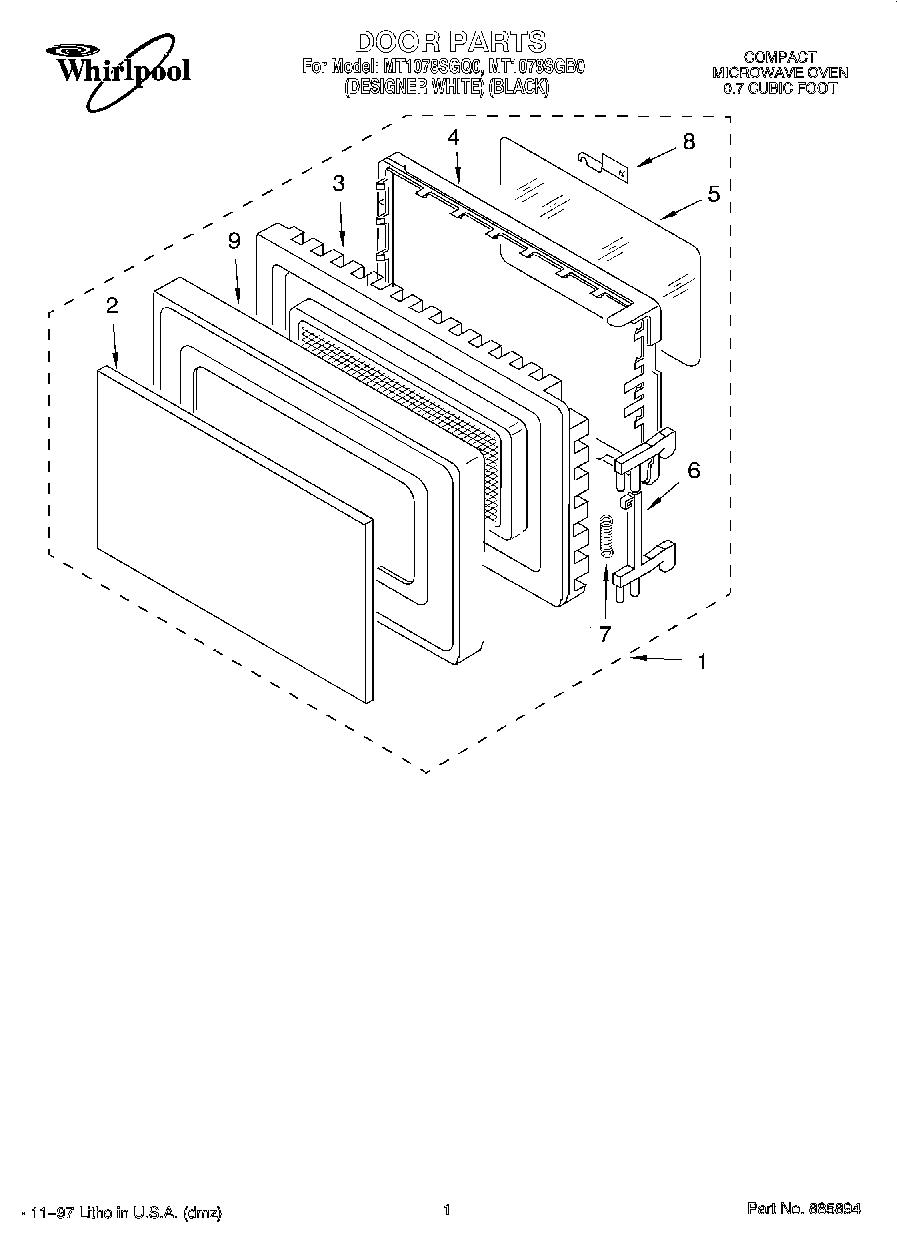

MT1078SGQ0 01 – DOOR

Written by

Products

Position	Product
1	Door Assembly (White Model)
1	Door Assembly (Black Model)
2	Front Screen
3	Door Frame Assembly (Black Model)
3	Door Frame Assembly (White Model)
4	Choke Cover
5	Tape, Seal
6	Latch
7	Spring, Latch
8	Cap
9	Panel, Door (White Model)
9	Panel, Door (Black Model)
