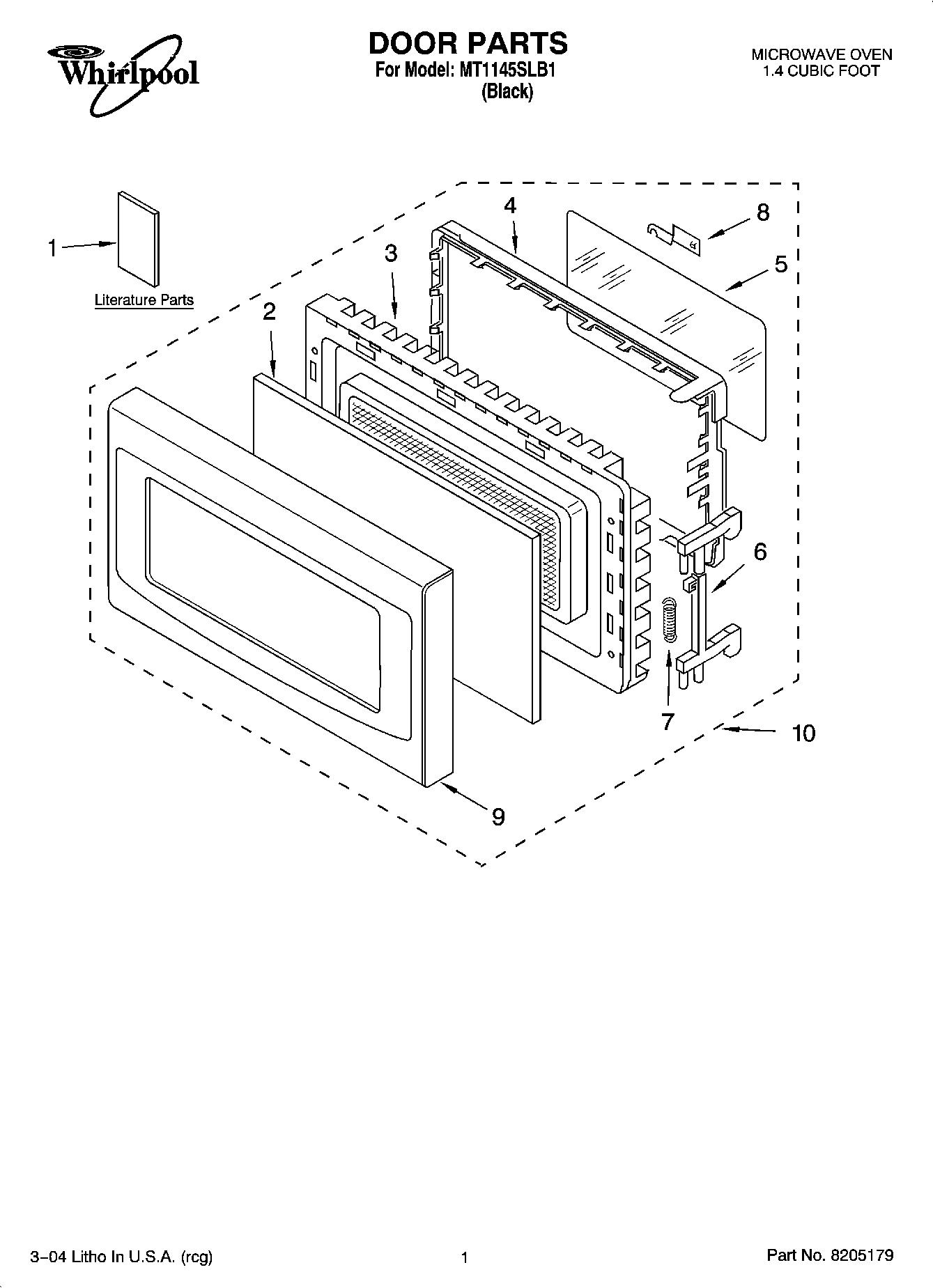

MT1145SLB1 01 – DOOR PARTS

Written by

Products

Position	Product
1	Literature Parts (Cook Guide Label)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Guide, U & C)
2	Front Screen
3	Door Frame Assembly (Black)
4	Choke Cover
5	Tape, Seal
6	Latch
7	Spring, Latch
8	Cap
9	Panel, Door
10	Door Assembly
