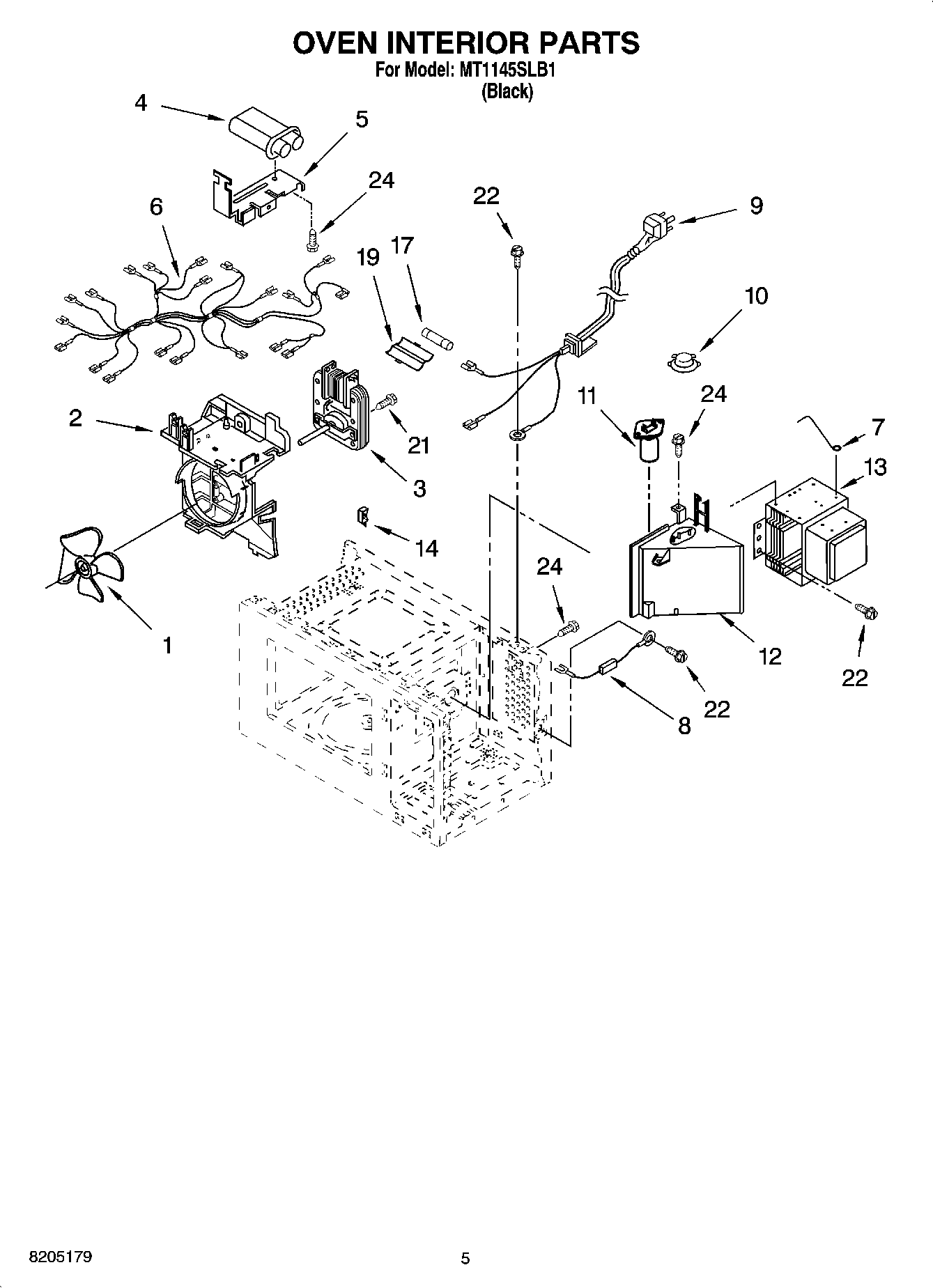

MT1145SLB1 05 – OVEN INTERIOR PARTS

Products

Position	Product
1	Propeller
2	Guide, Suction
3	Motor, Fan
4	WP8184813 Whirlpool Microwave Magnetron Capacitor
5	Bracket, H.V.C.
6	Leadwire Assembly
7	Bracket, Support
8	WP8205489 Whirlpool Microwave Voltage Wire
9	Power Cord
10	Thermostat
11	Lamp, Baseless
12	Duct, Air
13	W10859575 Whirlpool Magnetron
14	Holder
17	WP8183507 Whirlpool Microwave Fuse
19	Fuse Cap
21	Screw
22	4344826 Whirlpool Refrigerator Screw
24	Screw
