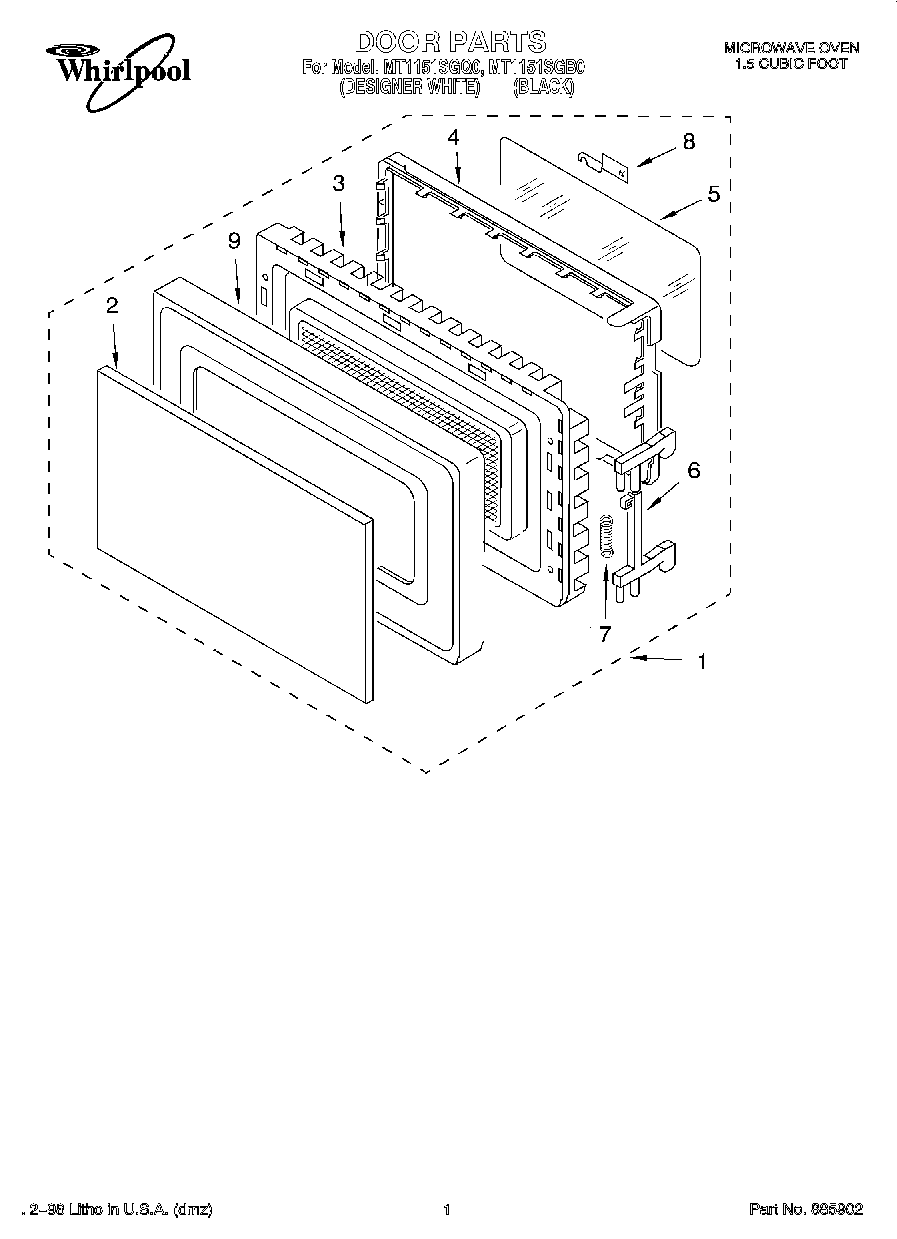

| 1 | Door Assembly (Black Model) |
| 1 | Door Assembly (White Model) |
| 2 | Front Screen (Black Model) |
| 2 | Front Screen (White Model) |
| 3 | Door Frame Assembly (Black Model) |
| 3 | Door Frame Assembly (White Model) |
| 4 | Choke Cover |
| 5 | Tape, Seal |
| 6 | Latch |
| 7 | Spring, Latch |
| 8 | Cap |
| 9 | Panel, Door (White Model) |
| 9 | Panel, Door (Black Model) |
