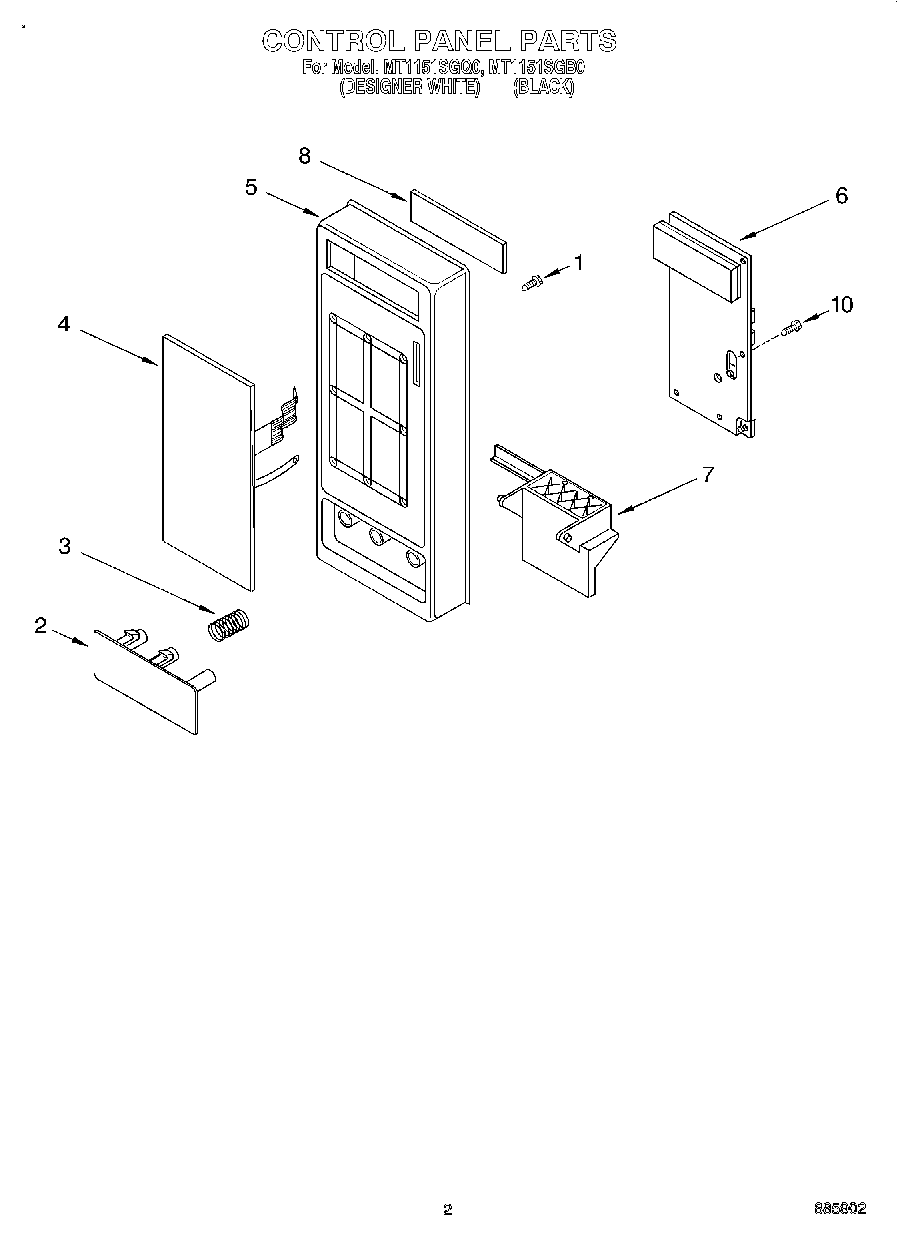

MT1151SGQ0 02 – CONTROL PANEL

Products

PositionProduct
1Screw
2Release Button (Black Model)
2Release Button (White Model)
3WP4158178 Whirlpool Microwave Spring
4Key Membrane (White Model)
4Key Membrane (Black Model)
5Control Panel (White Model)
5Control Panel (Black Model (Also, order key membrane))
6P.C.B Sub Assembly
7Lever, Release
8Window
10Screw
