MT1850XW0 02 – CABINET

MT1850XW0 02 – CABINET

Written by

in

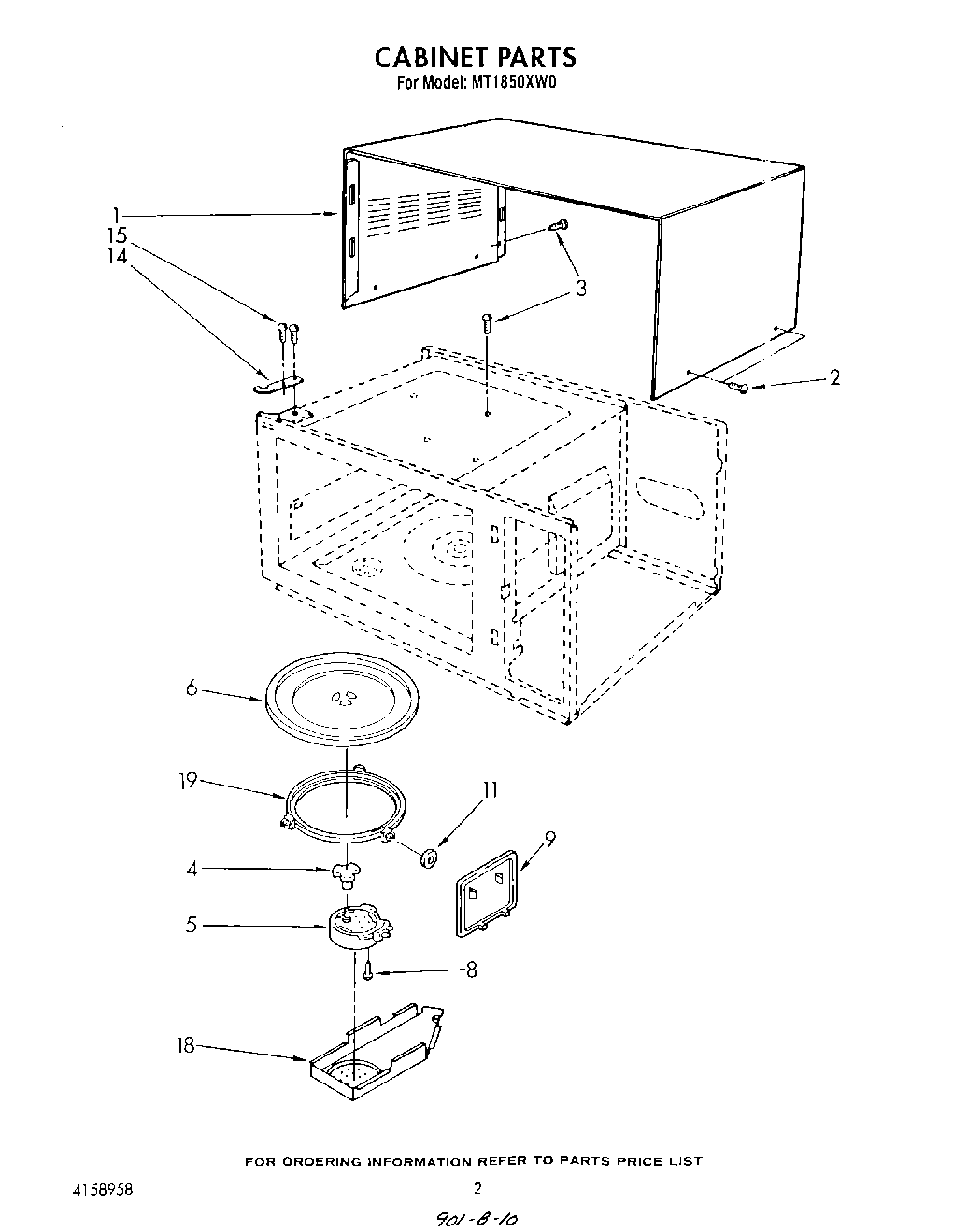

MT1850XW0 02 – CABINET

Products

PositionProduct
1Cabinet Wrapper
2Screw
3W11380570 Whirlpool Microwave Screw
4Shaft, Turntable
5Motor, Turntable
6Tray, Glass
8Screw (2)
9Cap, Wave Guide
11Roller, Table (3)
14Hinge Plate, Upper
15WP3400094 Whirlpool Screw
18Cover, Turntable Motor
19Base, Turntable
