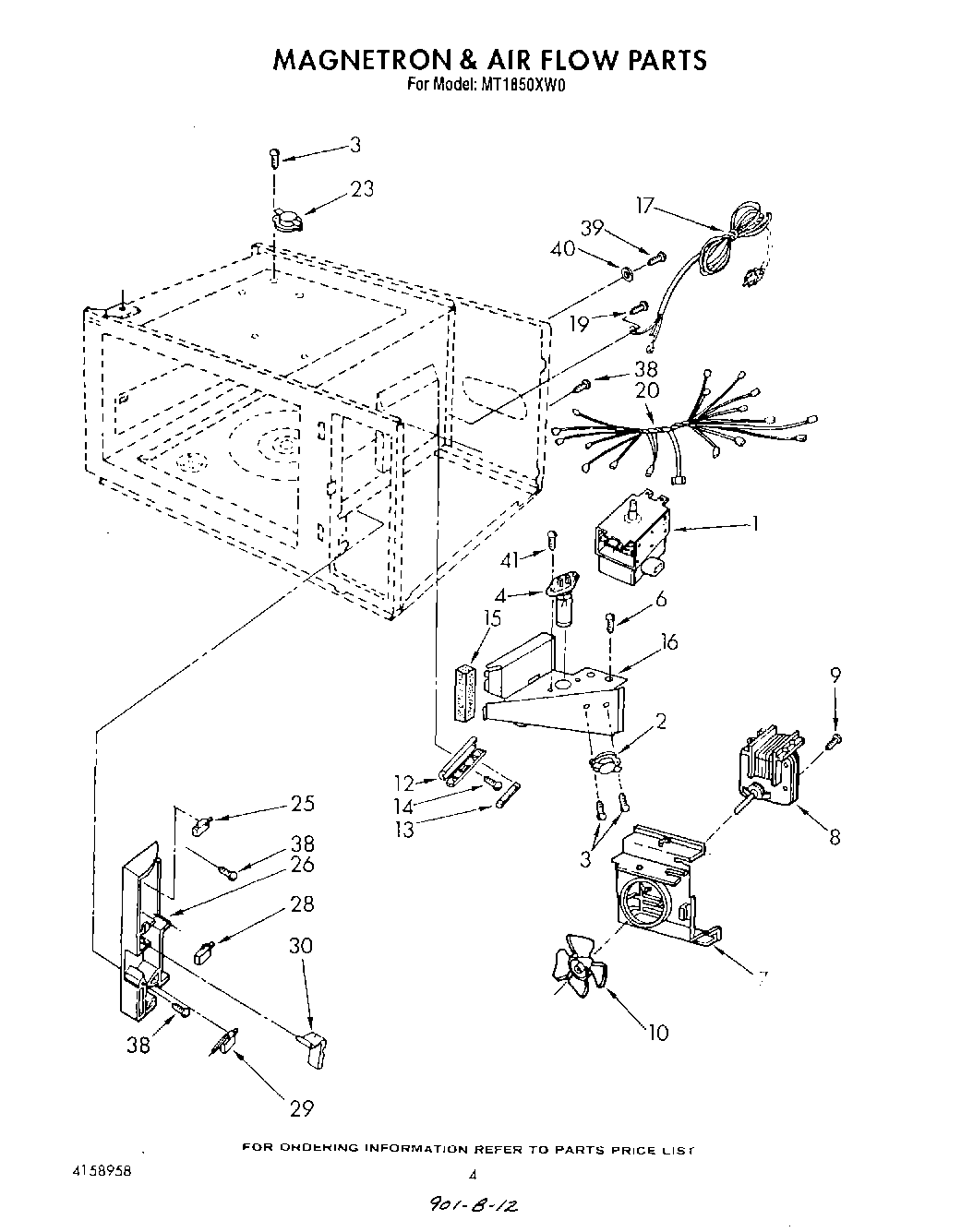

MT1850XW0 04 – MAGNETRON AND AIR FLOW , LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Guide, Use And Care
	Auto Set Chart
	Auto Set Guide
	Defrost Guide
	Tech Sheet
1	Magnetron
2	Thermostat
3	Screw (2)
4	Base Less Light
7	Bracket, Fan
8	Motor, Fan
9	Screw (2)
10	8184292 Whirlpool Microwave Fan Blade
12	Holder, Fuse
13	Fuse
14	Screw (2)
15	Cushion
16	Air Duct
17	Power Cord
19	Screw
20	Wiring Harness
23	Thermostat, Oven
25	4392027 Whirlpool Microwave Primary Switch
26	Latch Board
29	Micro Switch, Secondary
30	Release Rod
38	Special Screw (2)
39	Screw (2)
40	Washer
41	W11380570 Whirlpool Microwave Screw
