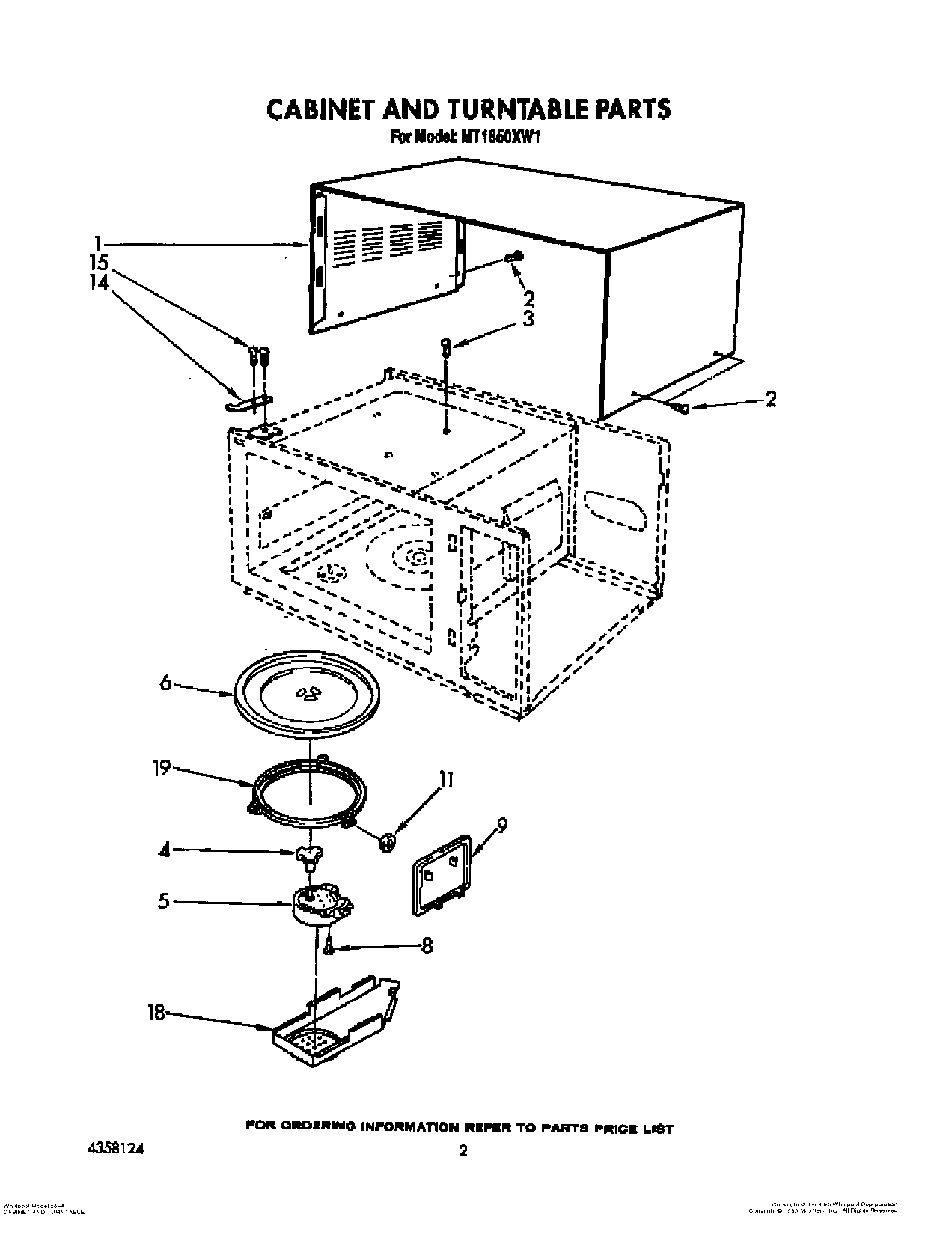

MT1850XW1 02 – CABINET AND TURNTABLE, LIT/OPTIONAL

MT1850XW1 02 – CABINET AND TURNTABLE, LIT/OPTIONAL

Written by

in

MT1850XW1 02 – CABINET AND TURNTABLE, LIT/OPTIONAL

Products

PositionProduct
Tech Sheet
Defrost Guide
Auto Set Guide
Auto Set Chart
Guide, Use And Care
Repair Parts List
1Cabinet Wrapper
2Screw
3W11380570 Whirlpool Microwave Screw
4Shaft, Turntable
5Motor, Turntable
6Tray, Glass
8Screw (2)
9Cap, Air Guide
11Roller, Table (3)
14Hinge Plate, Upper
15WP3400094 Whirlpool Screw
18Cover, Turntable Motor
19Base, Turntable
