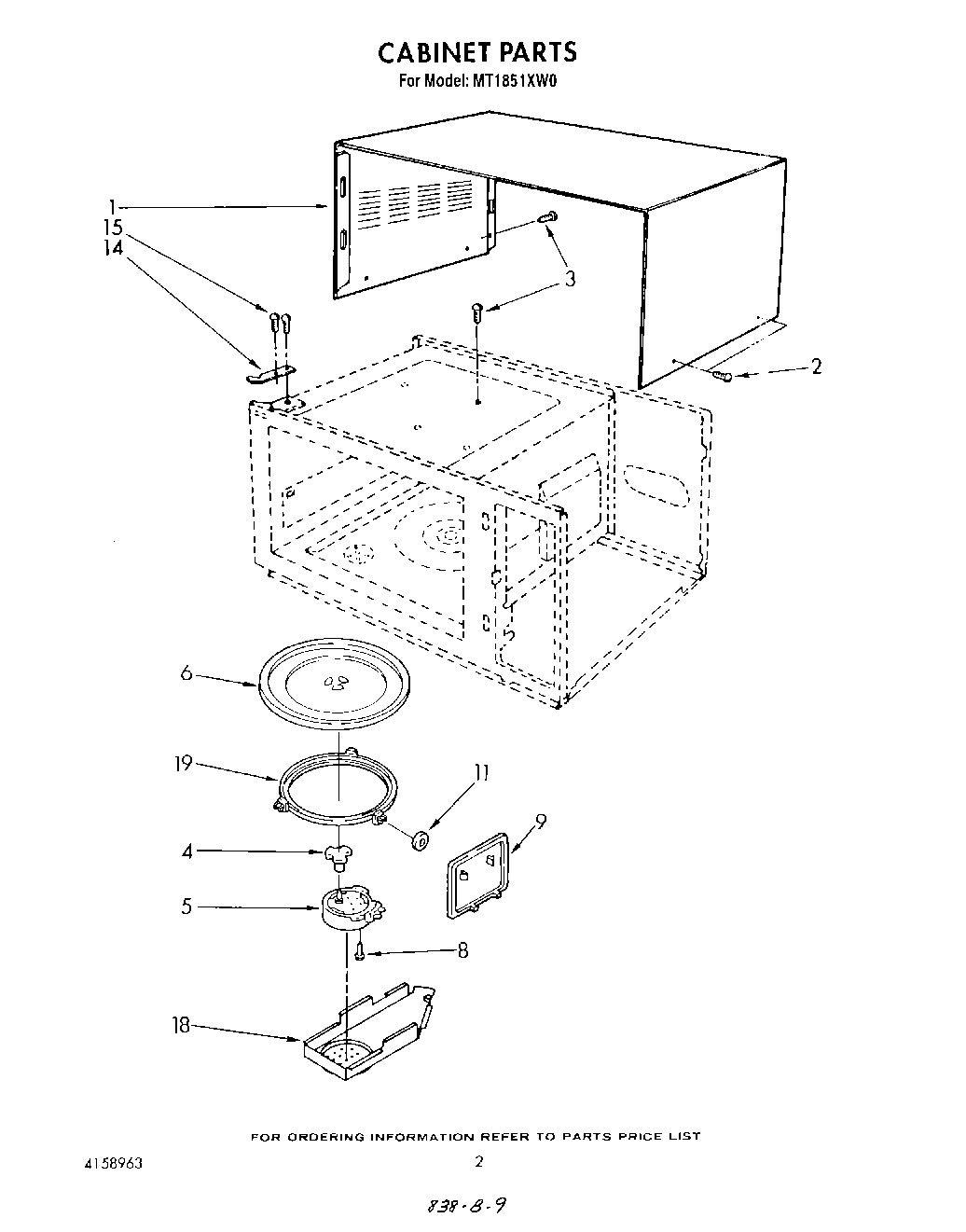

| 1 | Cabinet Wrapper |
| 2 | Screw |
| 3 | W11380570 Whirlpool Microwave Screw |
| 4 | Shaft, Turntable |
| 5 | Motor, Turntable |
| 6 | Tray, Glass |
| 8 | Screw (2) |
| 9 | Cap, Wave Guide |
| 11 | Roller, Table (3) |
| 14 | Hinge Plate, Upper |
| 15 | WP3400094 Whirlpool Screw |
| 18 | Cover, Turntable Motor |
| 19 | Base, Turntable |
