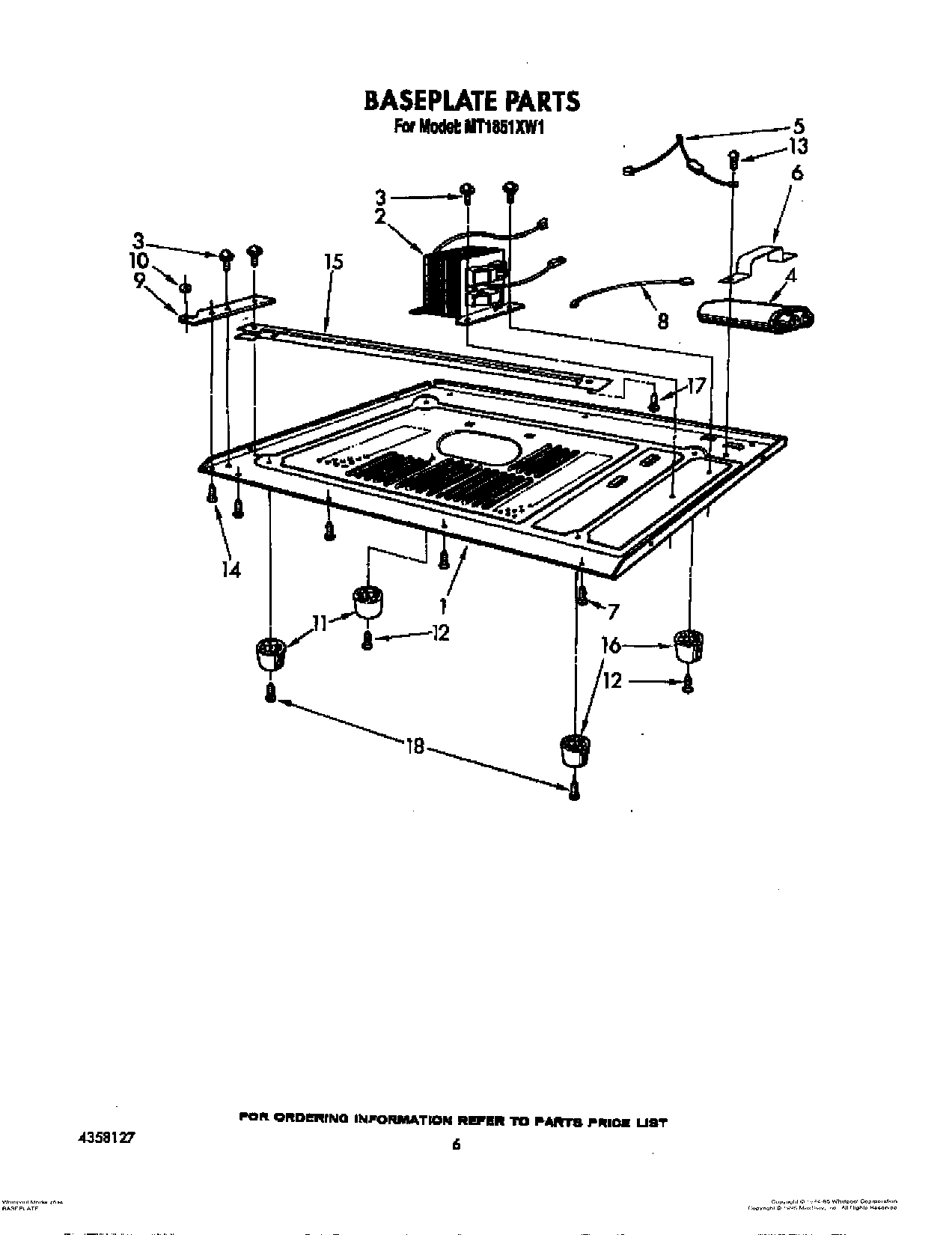

| 1 | Baseplate |
| 2 | Transformer |
| 3 | WP3400094 Whirlpool Screw |
| 4 | Capacitor - H.V. |
| 5 | H.V. Diode Cable |
| 6 | Bracket, Capacitor |
| 7 | Screw |
| 8 | H.V. Cable |
| 9 | Hinge, Lower |
| 10 | Washer |
| 11 | Leg, Left |
| 12 | Screw |
| 13 | Screw |
| 14 | Screw (2) |
| 15 | Bracket, Hinge |
| 16 | Leg, Right |
| 17 | W11380570 Whirlpool Microwave Screw |
| 18 | Screw |
