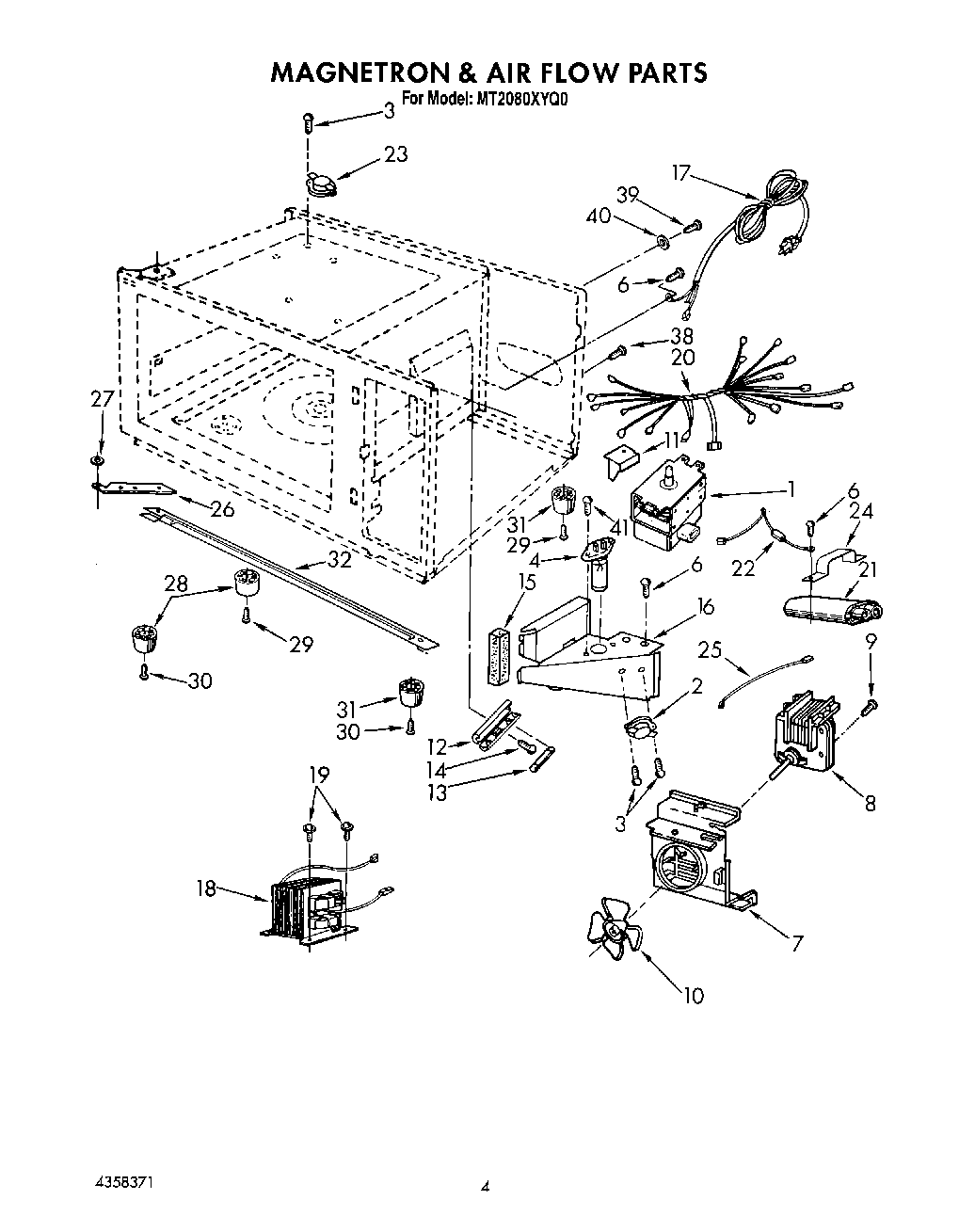

MT2080XYR0 04 – SECTION

Products

Position	Product
1	Magnetron
2	Thermostat, Oven
3	Screw (2)
4	Base Less Light
6	Screw
7	Bracket, Fan
8	Motor, Fan
9	Screw (2)
10	8184292 Whirlpool Microwave Fan Blade
11	Guide, Air
12	Holder, Fuse
13	Fuse
14	Screw (2)
15	Cushion
16	Air Duct
17	Power Cord
18	Transformer
19	WP3400094 Whirlpool Screw
20	Wiring Harness
21	Capacitor
22	H.V. Diode Cable
23	Thermostat, Oven
24	Bracket, Capacitor
25	H.V. Cable
26	Hinge, Lower
27	Washer
28	Foot (Left Side (2))
29	Screw
30	Screw
31	Leg (4)
32	Bracket, Hinge
38	Special Screw (2)
39	Screw (2)
40	Washer
41	W11380570 Whirlpool Microwave Screw
