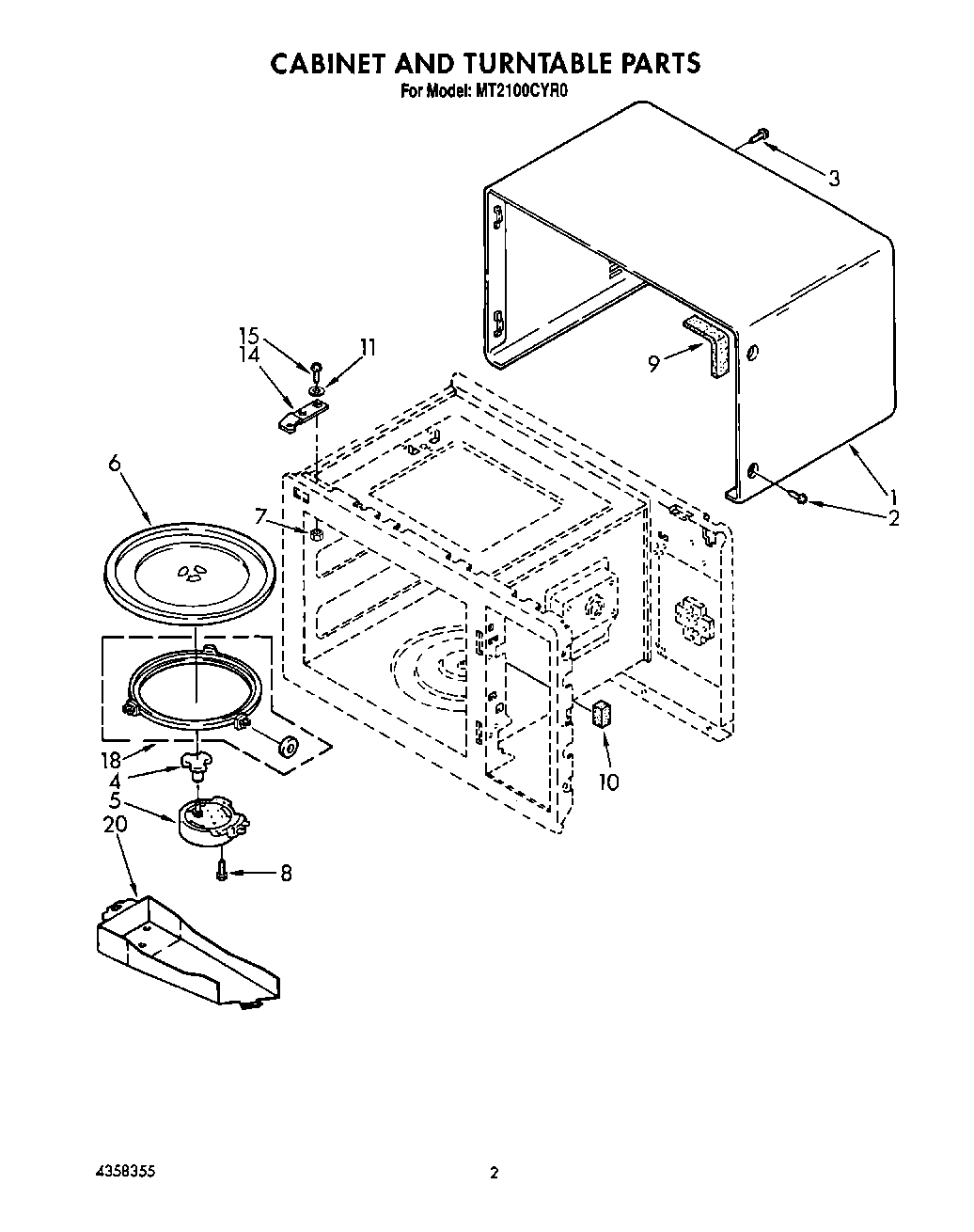

MT2100CYR0 02 – CABINET AND TURNTABLE

MT2100CYR0 02 – CABINET AND TURNTABLE

Written by

in

MT2100CYR0 02 – CABINET AND TURNTABLE

Products

PositionProduct
1Cabinet Wrapper
2Screw
3W11380570 Whirlpool Microwave Screw
4Shaft, Turntable
5Motor, Turntable
6Tray, Glass
7Magnetron Nut (4)
8Screw (2)
9Seal, Cabinet
10Seal, Foam
11Washer, Hinge
14Hinge, Upper
15Screw (2)
18Base, Turntable
20Cover, Turntable Motor
