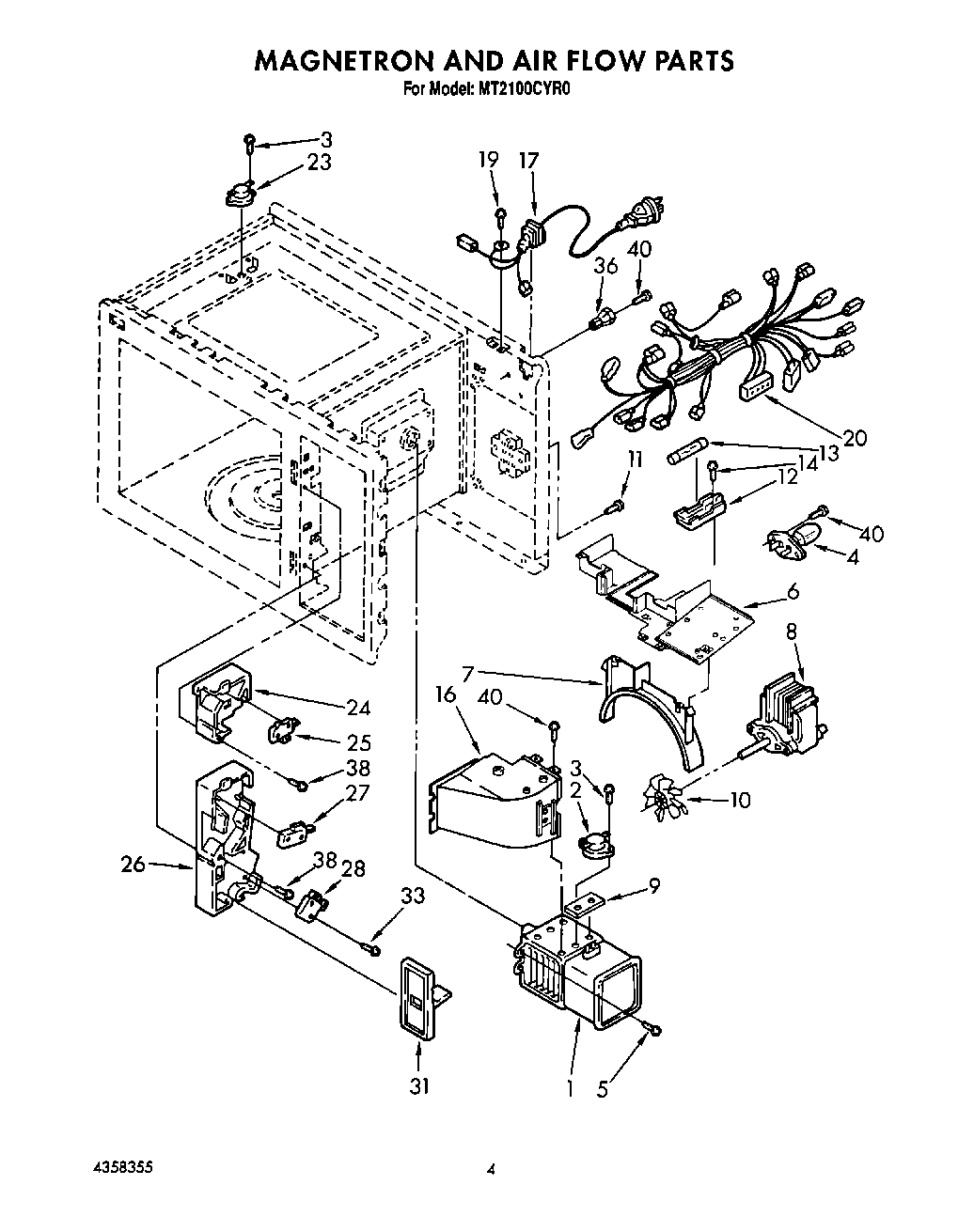

MT2100CYR0 04 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

MT2100CYR0 04 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

Written by

in

MT2100CYR0 04 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Auto Set Guide
Defrost Guide
Auto Set Chart
Tech Sheet
Guide, Use And Care
1Magnetron
2Thermostat
3Screw (2)
4Base Less Light
5WP3400094 Whirlpool Screw
6Guide, Air
7Bracket, Fan
8Motor, Fan
9Thermo Insulator
108184292 Whirlpool Microwave Fan Blade
11Screw
12Holder, Fuse
13Fuse
14Screw (2)
16Air Duct
17Cord, Power
19W11380570 Whirlpool Microwave Screw
20Wiring Harness
23Thermostat, Oven
24Latch, Upper
254392027 Whirlpool Microwave Primary Switch
26Latch, Lower
31Rod, Release
33Screw (2)
36Spacer
38Special Screw (2)
40Screw
