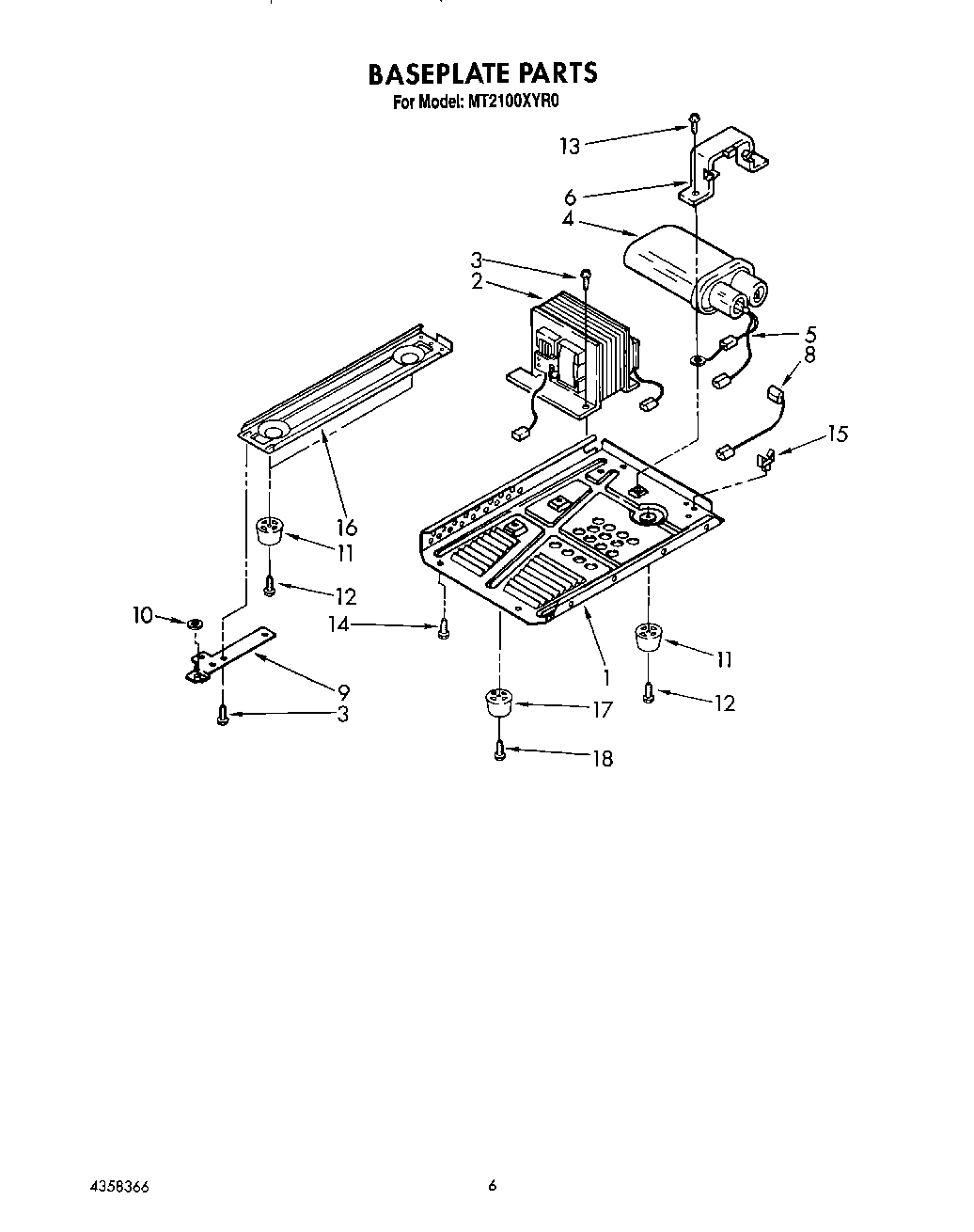

MT2100XYR0 05 – BASEPLATE

MT2100XYR0 05 – BASEPLATE

Written by

in

MT2100XYR0 05 – BASEPLATE

Products

PositionProduct
1Baseplate, Right Side
2Transformer
4Capacitor
5H.V. Diode Cable
6Bracket, Capacitor
7Screw
8H.V. Cable
9Hinge Plate, Lower
10Washer, Hinge
11Leg (4)
12Screw
13WP3400094 Whirlpool Screw
14W11380570 Whirlpool Microwave Screw
15Wire Holder (4)
16Base Plate, Left Side
17Foot, Right Front
18Screw
