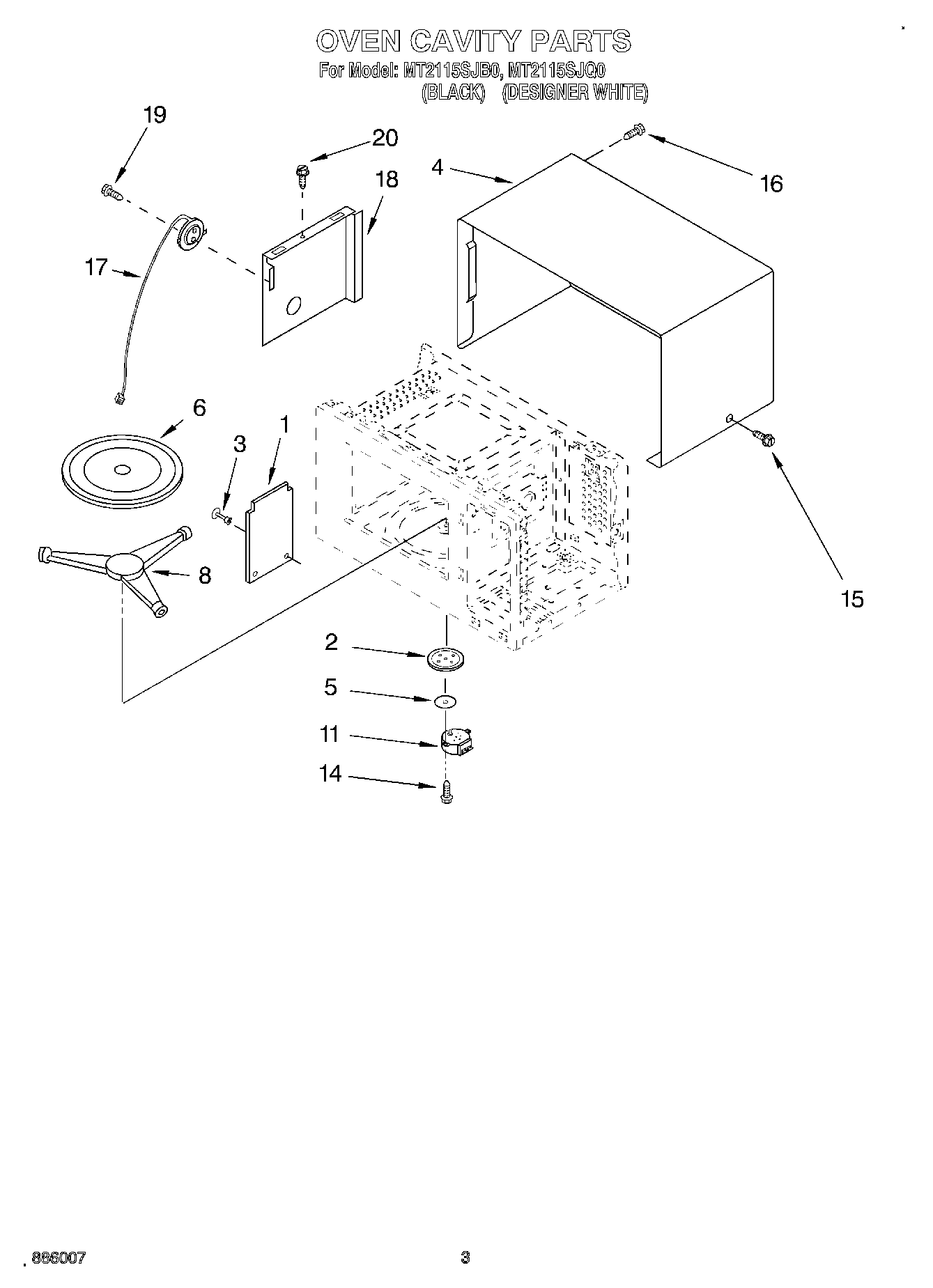

MT2115SJB0 03 – OVEN CAVITY

Products

PositionProduct
1Canopy
2Mount
3WP4359508 Whirlpool Microwave Stir Rivet
4Outer Case (White)
4Outer Case (Black)
5Seal, Water
6Tray, Glass
8Turntable Support
11WPW10159107 Whirlpool Microwave Turn Motor
14Screw
15W11245710 Whirlpool Refrigerator Screw
15Screw
16Screw
17Sensor, Humidity
18Guide, Sensor
19Screw
20W11380570 Whirlpool Microwave Screw
