MT2150XW0 04 – MAGNETRON AND AIRFLOW, LIT/OPTIONAL

Products

PositionProduct
Guide, Use And Care
Auto Set Guide
Auto Set Chart
Cook Book
Tech Sheet
Defrost Guide

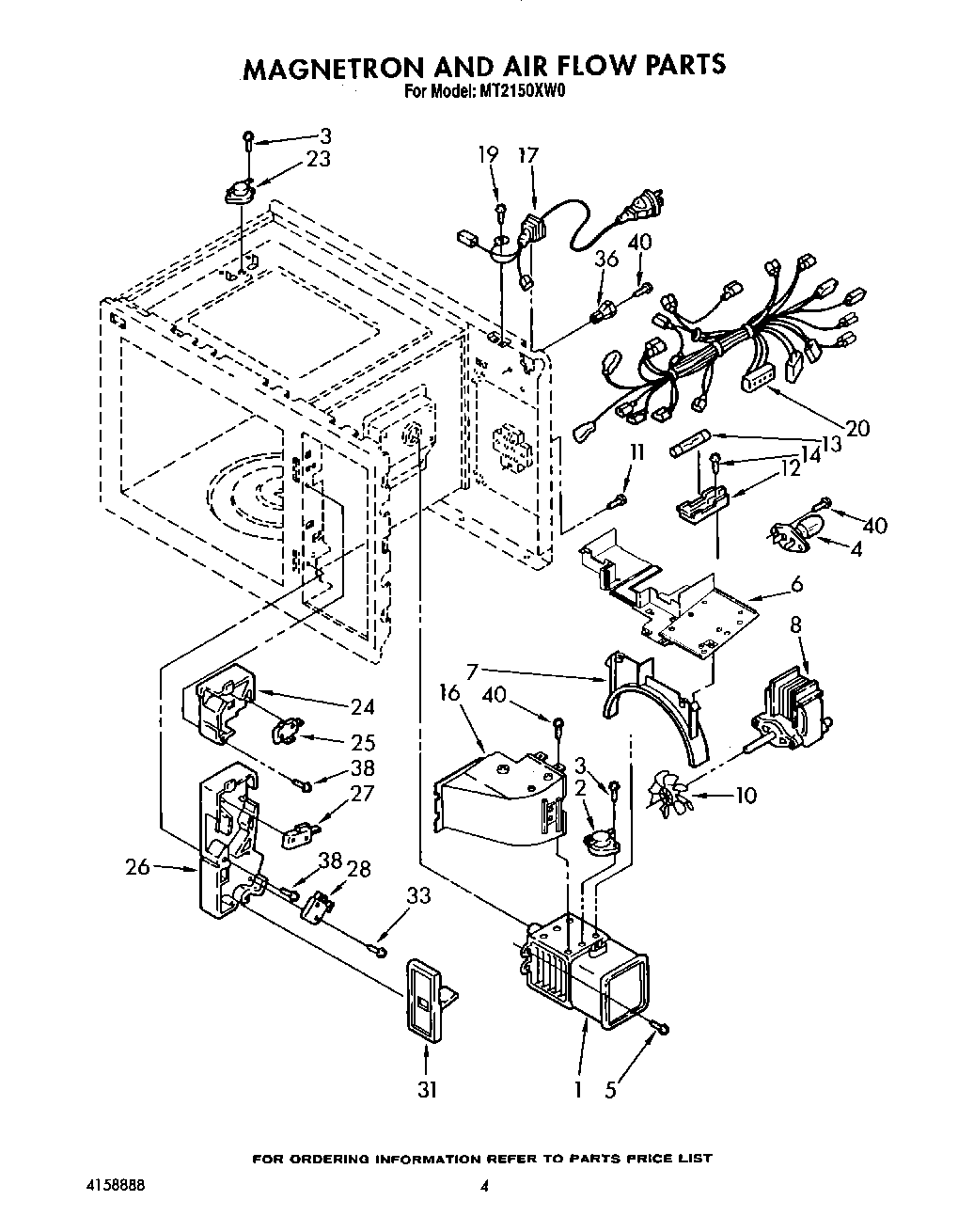

Repair Parts List
1Magnetron
2Thermostat
3Screw (2)
4Base Less Light
5WP3400094 Whirlpool Screw
6Guide, Air
7Bracket, Fan
8Motor, Fan
108184292 Whirlpool Microwave Fan Blade
11Screw
12Holder, Fuse
13Fuse
14Screw (2)
16Air Duct
17Cord, Power
19W11380570 Whirlpool Microwave Screw
20Wiring Harness
23Thermostat, Oven
24Latch, Upper
254392027 Whirlpool Microwave Primary Switch
26Latch, Lower
28Micro Switch, Secondary
31Rod, Release
33Screw (2)
36Spacer
38Special Screw (2)
40Screw
