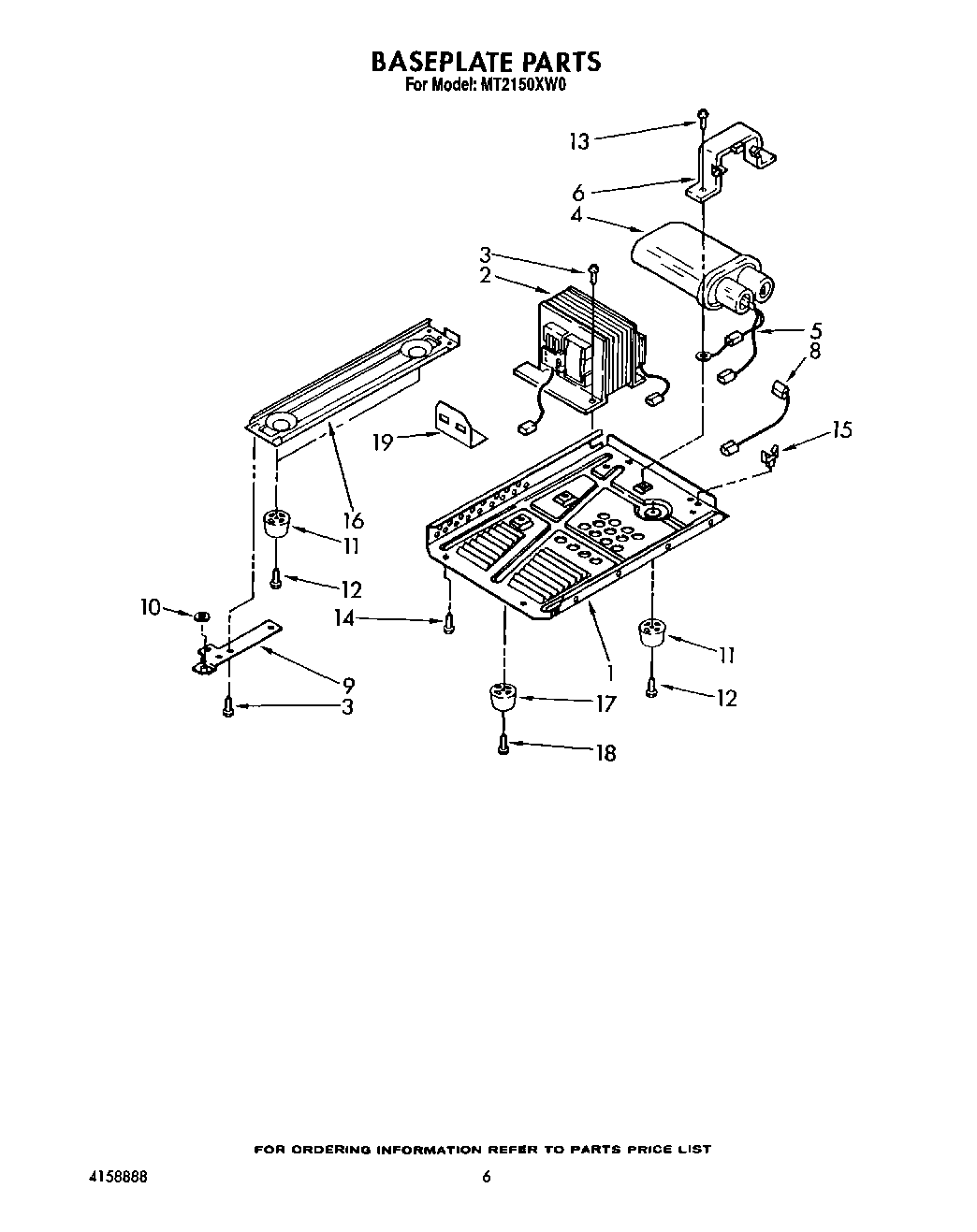

MT2150XW0 05 – BASEPLATE

MT2150XW0 05 – BASEPLATE

Written by

in

MT2150XW0 05 – BASEPLATE

Products

Position	Product
1	Baseplate, Right Side
2	Transformer
4	Capacitor – H.V.
5	H.V. Diode Cable
6	Bracket, Capacitor
7	Screw
8	H.V. Cable
9	Hinge Plate, Lower
10	Washer, Hinge
11	Leg (4)
12	Screw
13	WP3400094 Whirlpool Screw
14	W11380570 Whirlpool Microwave Screw
15	Wire Holder (4)
16	Base Plate, Left Side
17	Foot, Right Front
18	Screw
19	Shield, Wire
