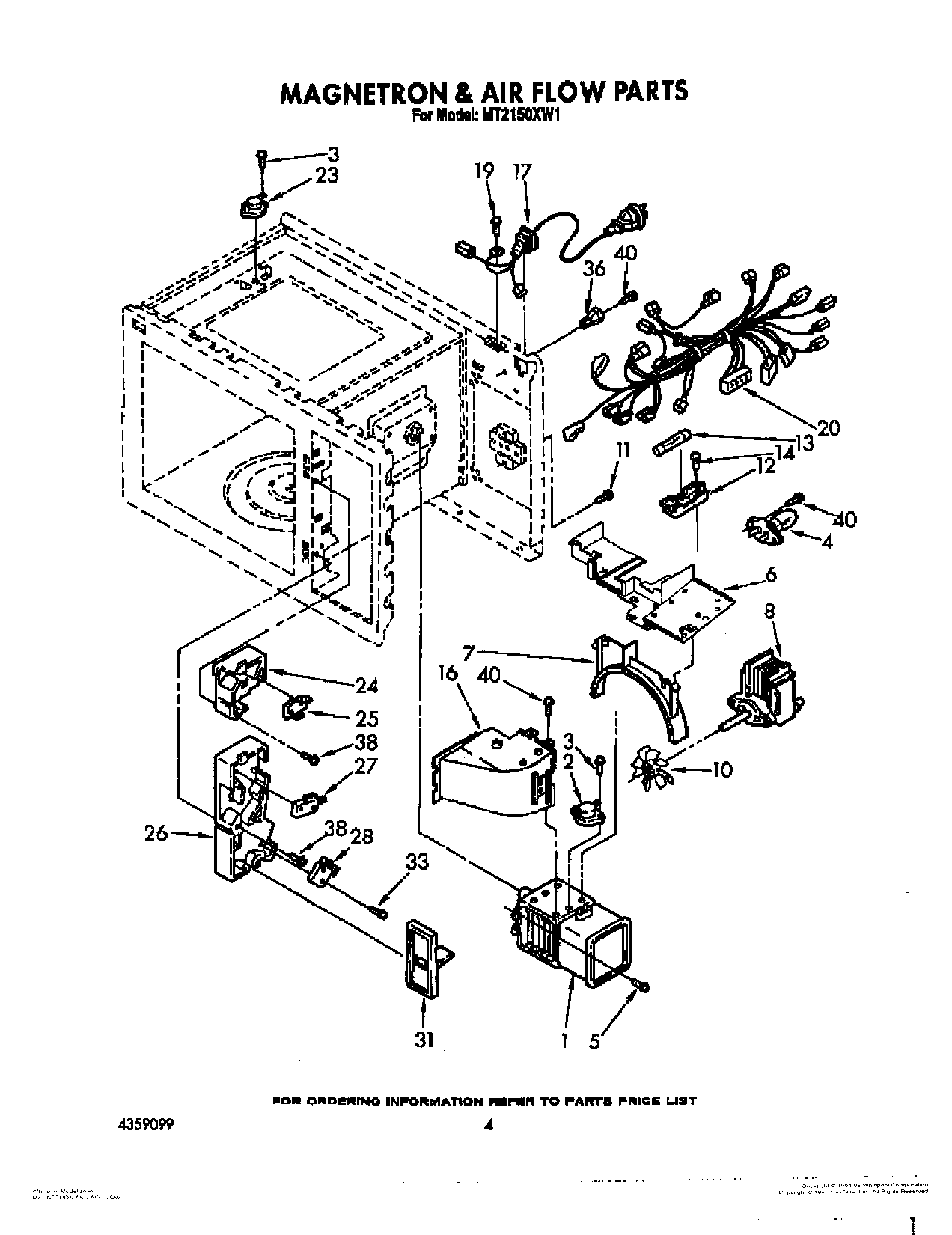

MT2150XW1 04 – MAGNETRON AND AIR FLOW, OPTIONAL

Products

Position	Product
	Repair Parts List
	Auto Set Guide
	Guide, Use And Care
	Auto Set Chart
	Cook Book
	Defrost Guide
	Tech Sheet
1	Magnetron
2	Thermostat
3	Screw (2)
4	Base Less Light
5	WP3400094 Whirlpool Screw
6	Guide, Air
7	Bracket, Fan
8	Motor, Fan
10	8184292 Whirlpool Microwave Fan Blade
11	Screw
12	Holder, Fuse
13	Fuse
14	Screw (2)
16	Air Duct
17	Cord, Power
19	W11380570 Whirlpool Microwave Screw
20	Wiring Harness
23	Thermostat, Oven
24	Latch, Upper
25	4392027 Whirlpool Microwave Primary Switch
26	Latch, Lower
28	Micro Switch, Secondary
31	Rod, Release
33	Screw (2)
36	Spacer
38	Special Screw (2)
40	Screw
