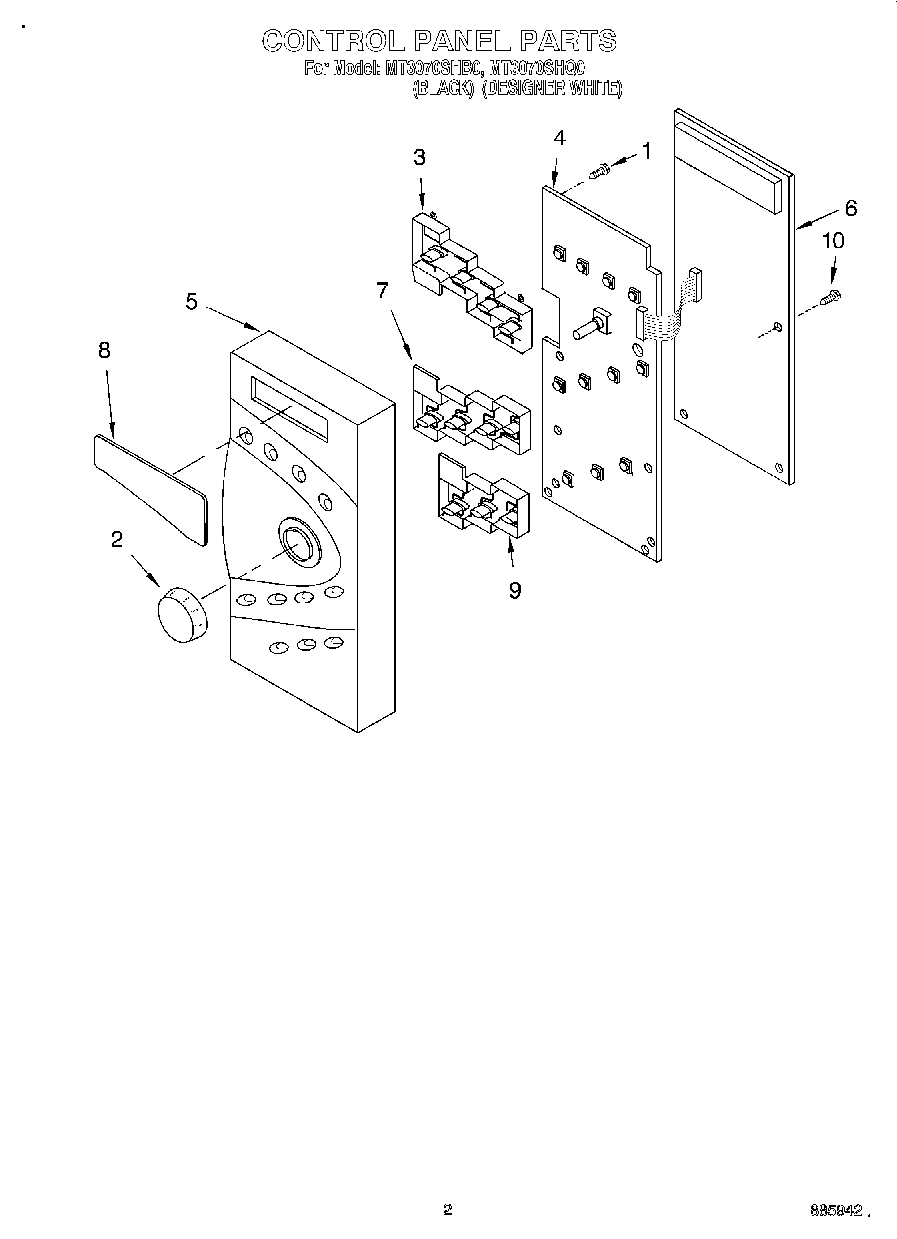

MT3070SHB0 02 – CONTROL PANEL

MT3070SHB0 02 – CONTROL PANEL

Written by

in

MT3070SHB0 02 – CONTROL PANEL

Products

PositionProduct
1Screw
2Knob (Black)
2Knob (White)
3Button, Cook (White)
3Button, Cook (Black)
4PCB Assy
5Control Panel (Black)
5Control Panel (White)
6P.C.B Sub Assembly
7Button, Clock (White)
7Button, Clock (Black)
8Window
9Button, Start (White)
9Button, Start (Black)
10Screw
