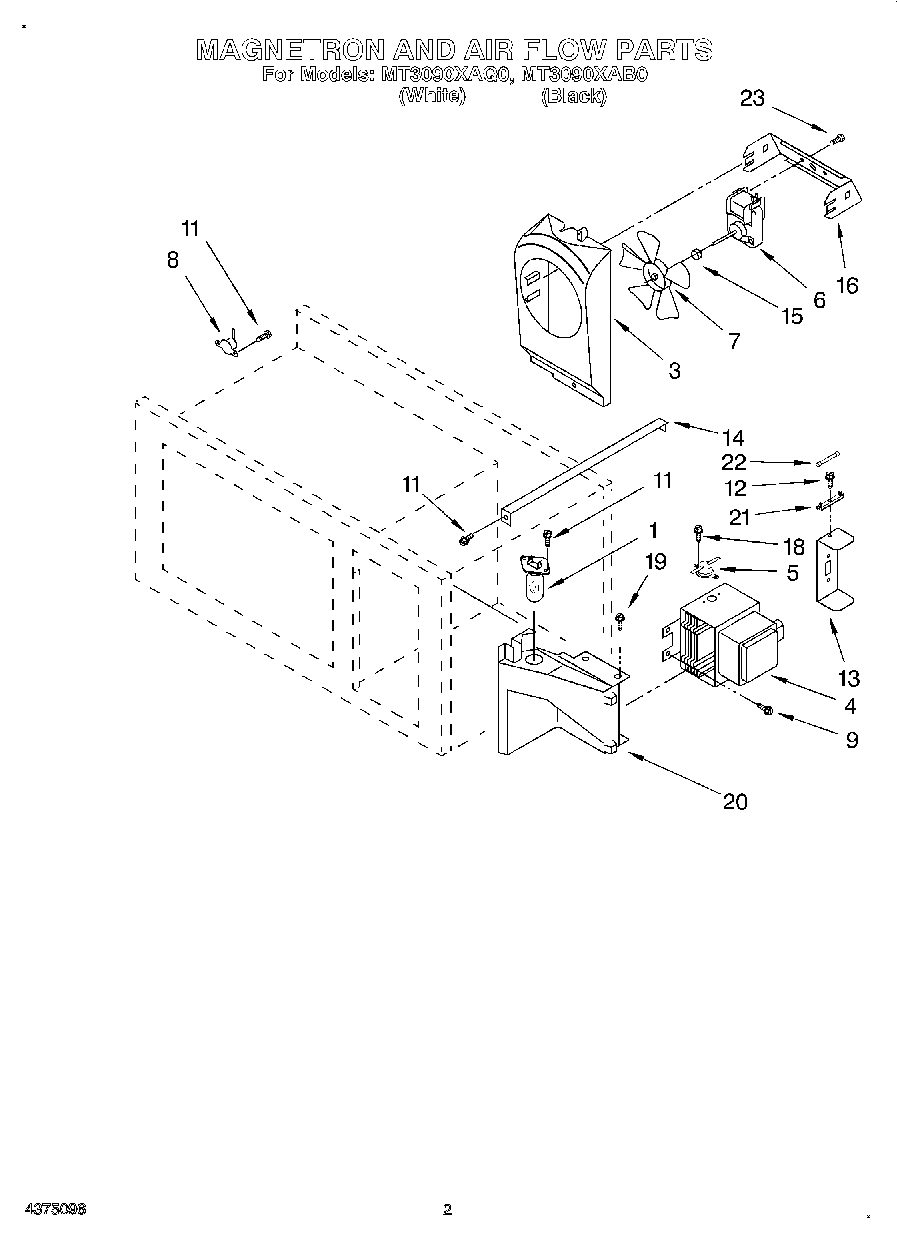

MT3090XAQ0 02 – MAGNETRON AND AIRFLOW, LITERATURE

Products

Position	Product
	White Model
	Black Model
	Use And Care Guide
	Cook Guide Label
	Tech Sheet
1	Lamp, Oven
3	Duct, Fan
4	W10245183 Whirlpool Microwave Magnetron
5	WP4375079 Whirlpool Microwave Thermostat
6	Motor, Fan
7	Blade, Fan
8	Thermostat, Oven
9	Screw, Magnatron
11	8206180 Whirlpool Microwave Screw
12	Screw
13	Bracket, Magnatron
14	Brace
15	Clip, Fan Blade
16	Bracket, Fan Motor
18	Screw
19	Screw
20	Duct, Magnetron
21	Fuse Holder
22	Fuse
23	Screw
