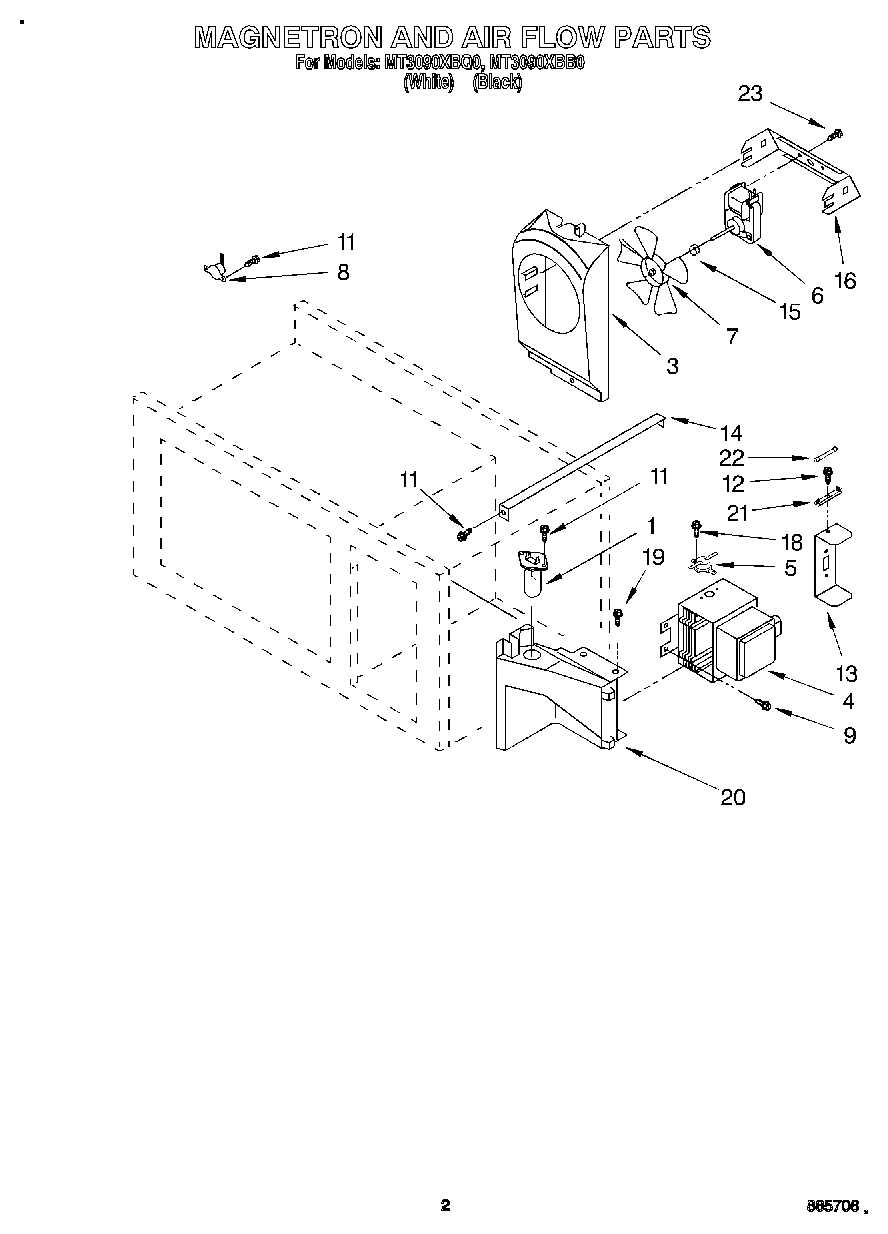

MT3090XBB0 02 – MAGNETRON AND AIR FLOW, LITERATURE

Products

PositionProduct
Use And Care Guide
Cook Guide Label
Tech Sheet
1Lamp, Oven
3Duct, Fan
4W10245183 Whirlpool Microwave Magnetron
5WP4375079 Whirlpool Microwave Thermostat
6Motor, Fan
7Blade, Fan
8Thermostat, Oven
9Screw, Magnatron
118206180 Whirlpool Microwave Screw
12Screw
13Bracket, Magnatron
14Brace
15Clip, Fan Blade
16Bracket, Fan Motor
18Screw
19Screw
20Duct, Magnetron
21W10245194 Whirlpool Microwave Fuse Block
22Fuse
23Screw
