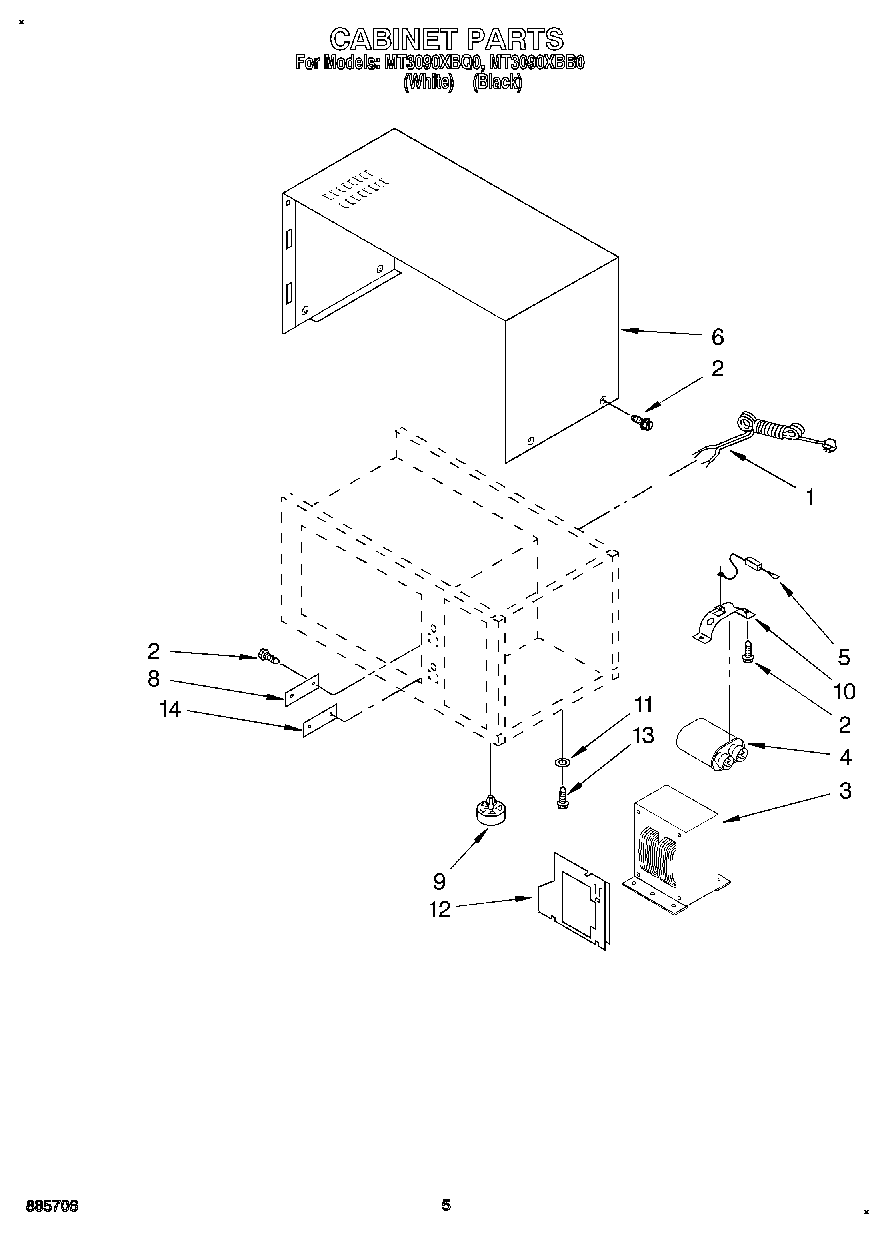

MT3090XBB0 05 – CABINET

Written by

Products

Position	Product
1	Power Cord
2	8206180 Whirlpool Microwave Screw
3	Transformer
4	WP4375020 Whirlpool High Voltage Capacitor
5	Rectifier
6	Outer Cabinet (Black)
6	Outer Cabinet (White)
8	Cover, Upper
9	Foot
10	Bracket, Capacitor
11	Lock Washer
12	Air Duct
13	Screw
14	Cover, Lower
