MT3105SHQ0 02 – CONTROL PANEL – Aparts

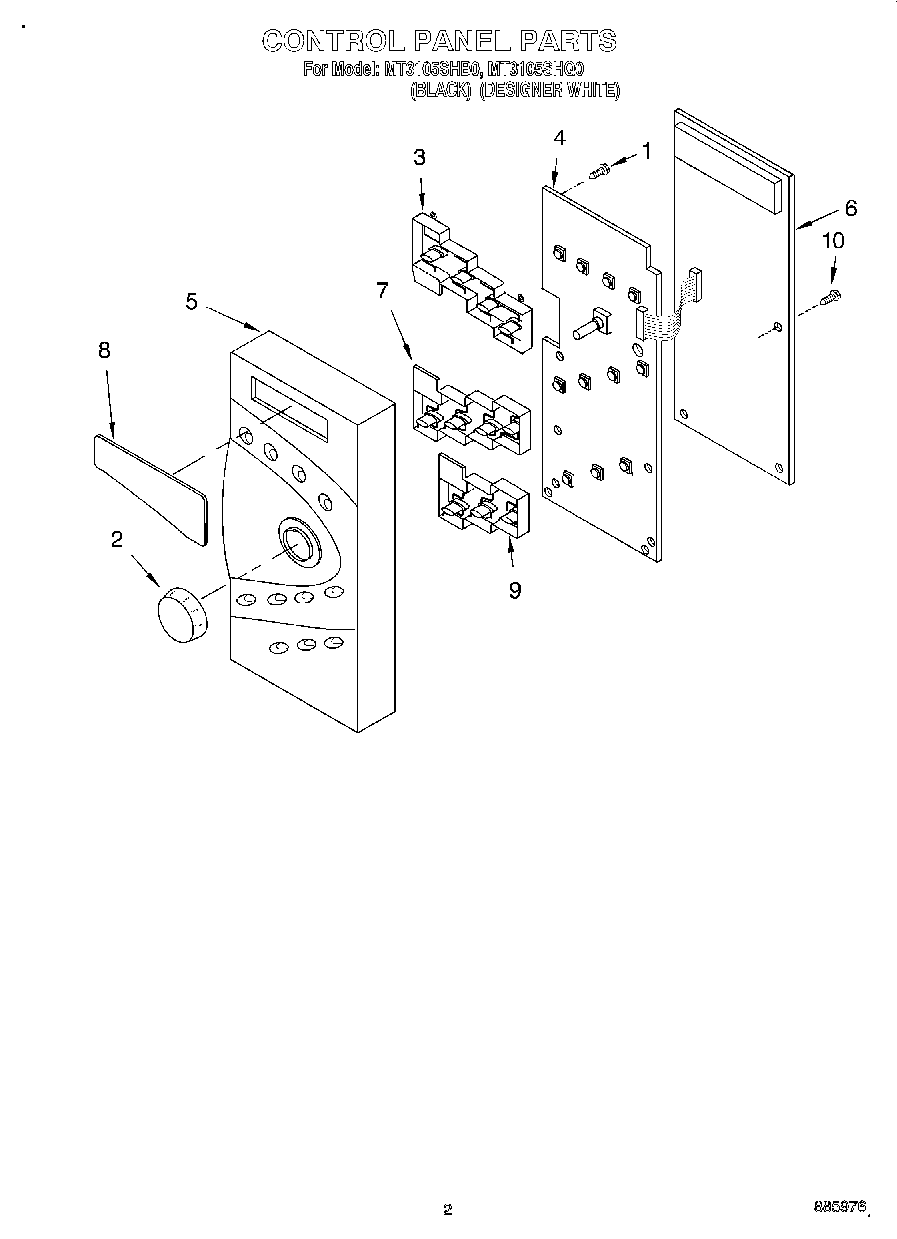

MT3105SHQ0 02 – CONTROL PANEL

Products

Position	Product
1	Screw
2	Knob (Black)
2	Knob (White)
3	Button, Cook (White)
3	Button, Cook (Black)
4	PCB Assy
5	Control Panel (Black)
5	Control Panel (White)
6	P.C.B Sub Assembly
7	Button, Clock (Black)
7	Button, Clock (White)
8	Window
9	Button, Start (Black)
9	Button, Start (White)
10	Screw
