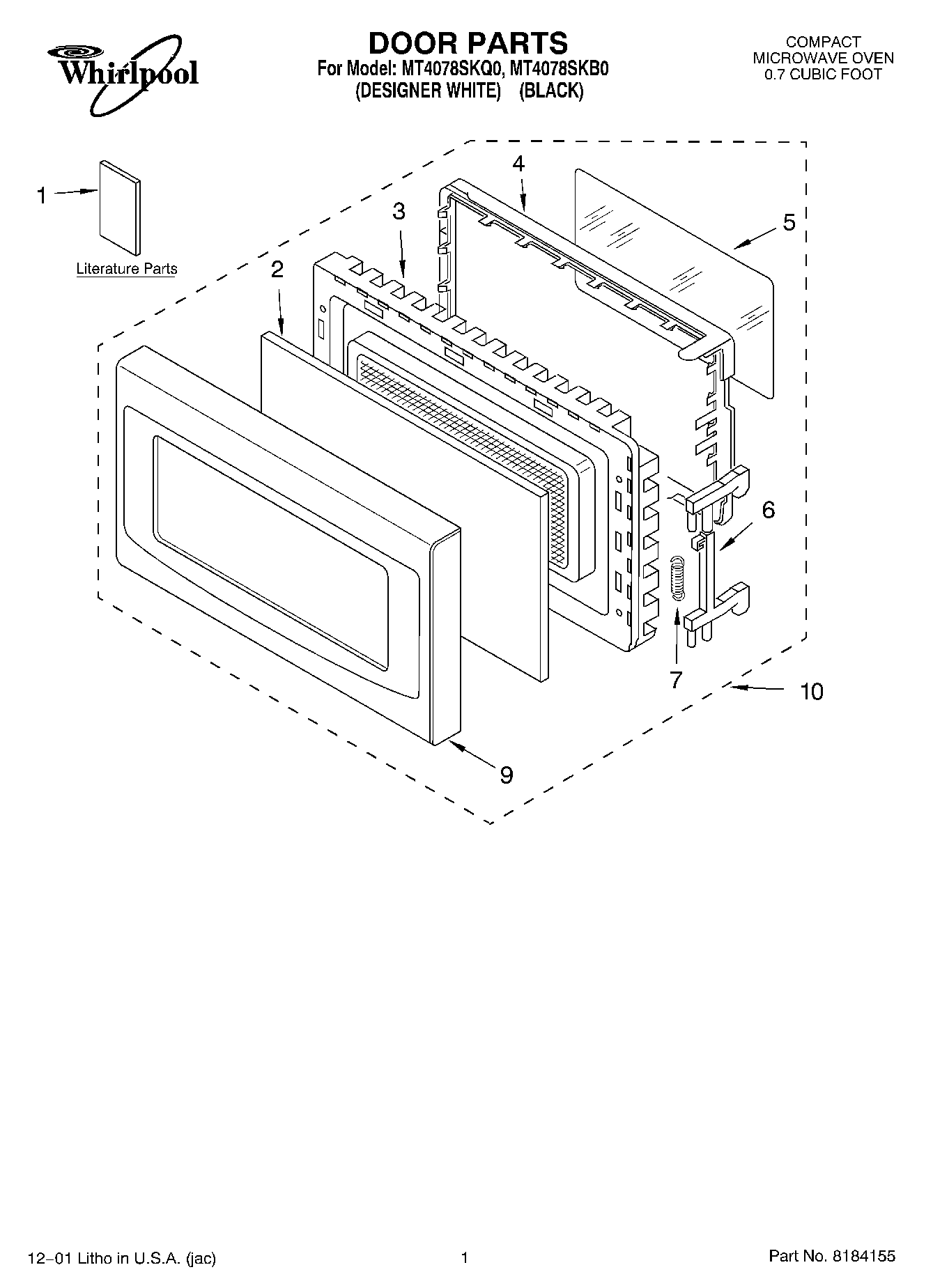

MT4078SKB0 01 – DOOR, LITERATURE

MT4078SKB0 01 – DOOR, LITERATURE

Written by

in

MT4078SKB0 01 – DOOR, LITERATURE

Products

PositionProduct
1LITERATURE PARTS (Tech Sheet)
1LITERATURE PARTS (Cook Guide Label)
1LITERATURE PARTS (Use & Care Guide)
1Literature Parts (Instructions, Installation) (Built-In)
2Front Screen
3Door Frame Assembly (Black Model)
3Door Frame Assembly (White Model)
4Choke Cover
5Tape, Seal
6Latch
7Spring
9Panel, Door (White Model)
9Panel, Door (Black Model)
10Door Assembly (White)
10Door Assy (Black Model)
