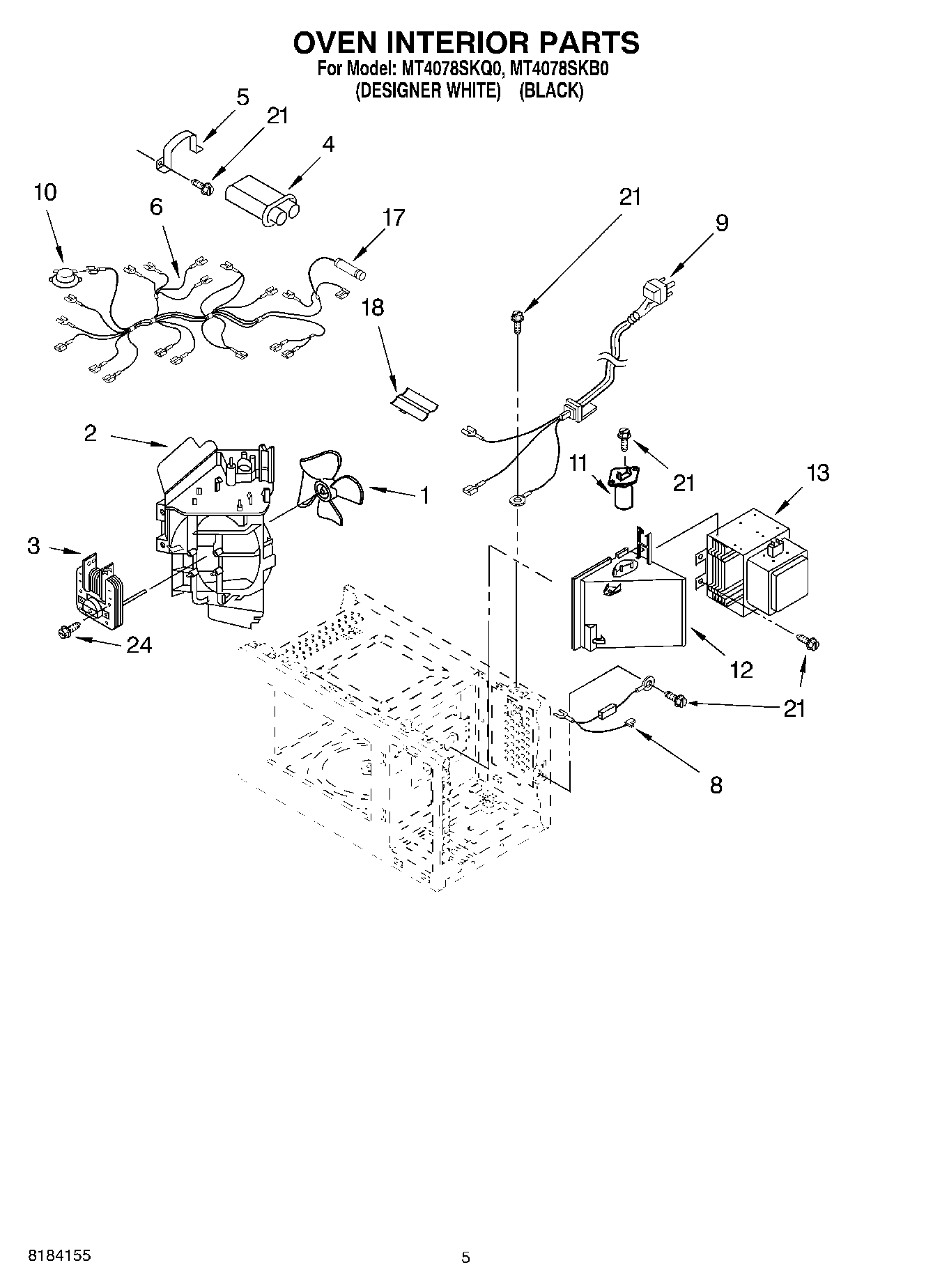

MT4078SKQ0 05 – OVEN INTERIOR

Written by

Products

Position	Product
1	8184292 Whirlpool Microwave Fan Blade
2	Guide, Suction
3	Motor, Fan
4	H.V. Capacitor
5	H.V.C Bracket
6	Leadwire Assembly
8	WP8205489 Whirlpool Microwave Voltage Wire
9	Power Cord
10	Thermostat
11	Lamp, Baseless
12	Duct, air
13	Magnetron
17	Fuse
18	Fuse Cap
21	4344826 Whirlpool Refrigerator Screw
24	Screw
