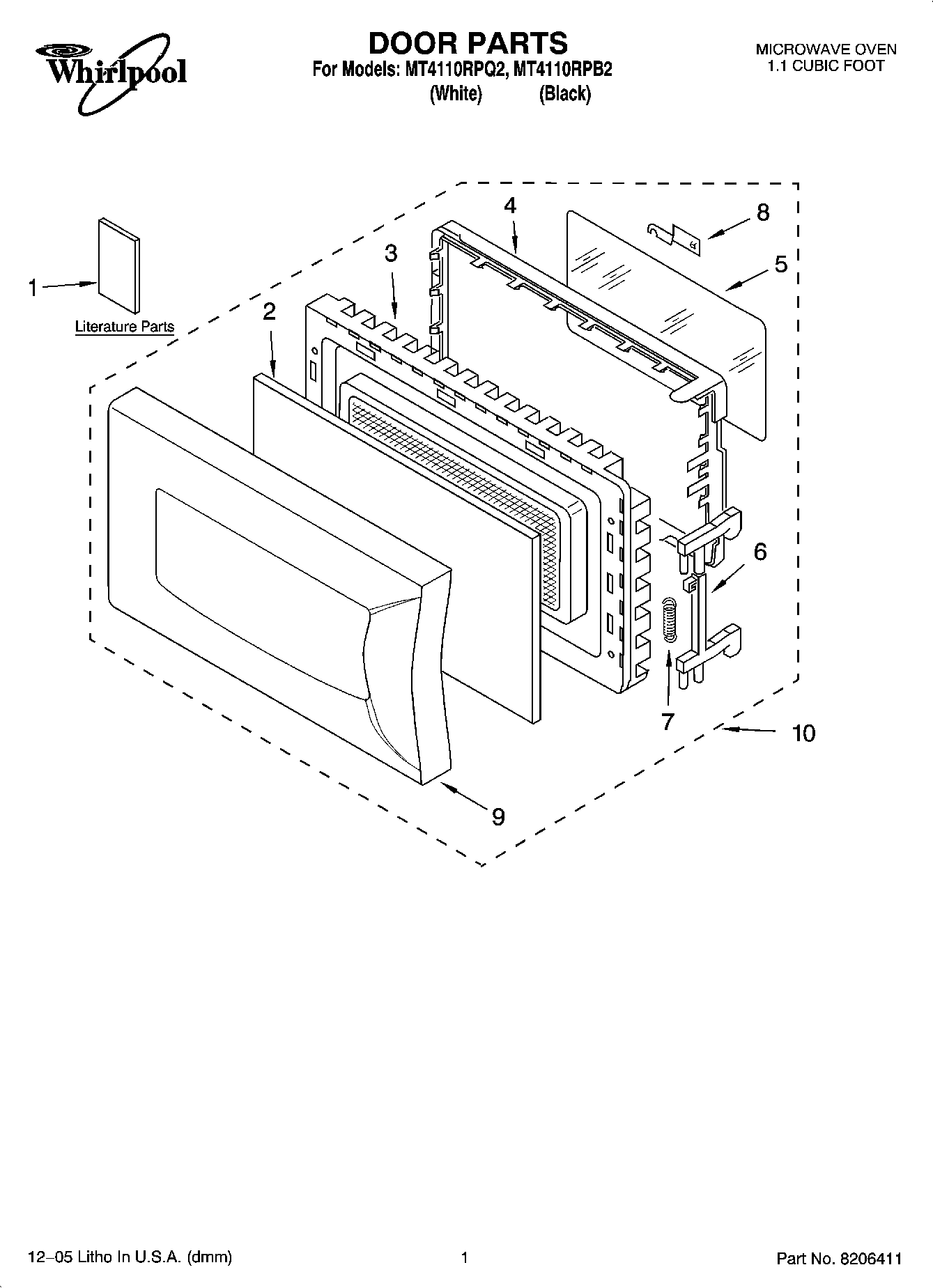

MT4110RPB2 01 – DOOR PARTS

Products

PositionProduct
1Cook Guide Label
1Installation Instructions
1Tech Sheet
1Use & Care Guide
2Front Screen
3Door Frame Assembly (Black)
3Door Frame Assembly (White)
4Choke Cover
5Tape, Seal
6Latch
7Spring
8Cap
9Panel, Door (White)
9Panel, Door (Black)
10Door Assembly (White)
10Door Assembly (Black)
