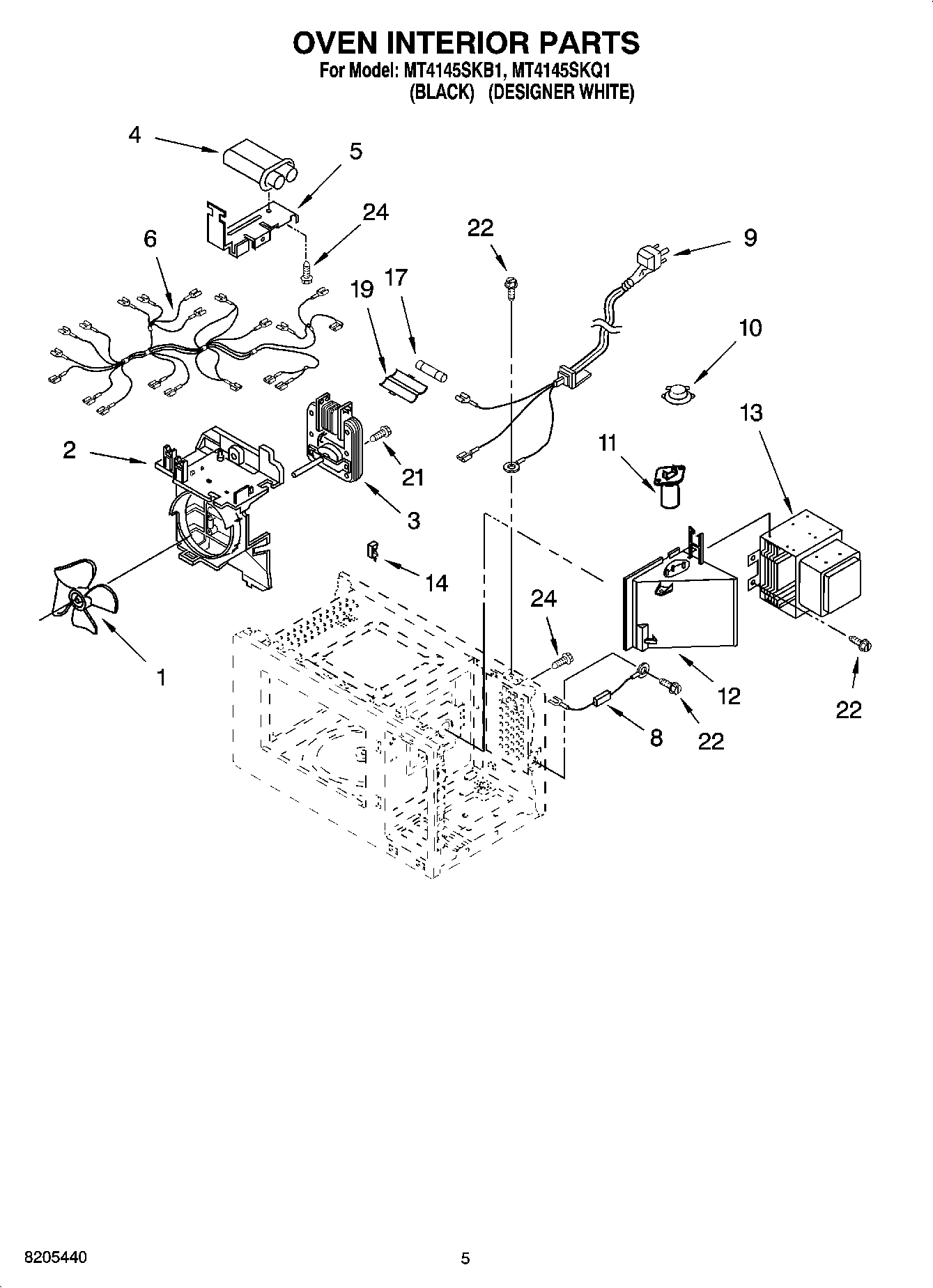

MT4145SKB1 05 – OVEN INTERIOR PARTS

MT4145SKB1 05 – OVEN INTERIOR PARTS

Written by

in

MT4145SKB1 05 – OVEN INTERIOR PARTS

Products

PositionProduct
18184292 Whirlpool Microwave Fan Blade
2Guide, Suction
3Motor, Fan
4WP8184813 Whirlpool Microwave Magnetron Capacitor
5Bracket, H.V.C.
6Leadwire Assembly
8WP8205489 Whirlpool Microwave Voltage Wire
9Power Cord
10Thermostat
11Lamp, Baseless
12Duct, Air
13W10859575 Whirlpool Magnetron
14Holder
17WP8183507 Whirlpool Microwave Fuse
19Fuse Cap
21Screw
22Screw
24Screw
