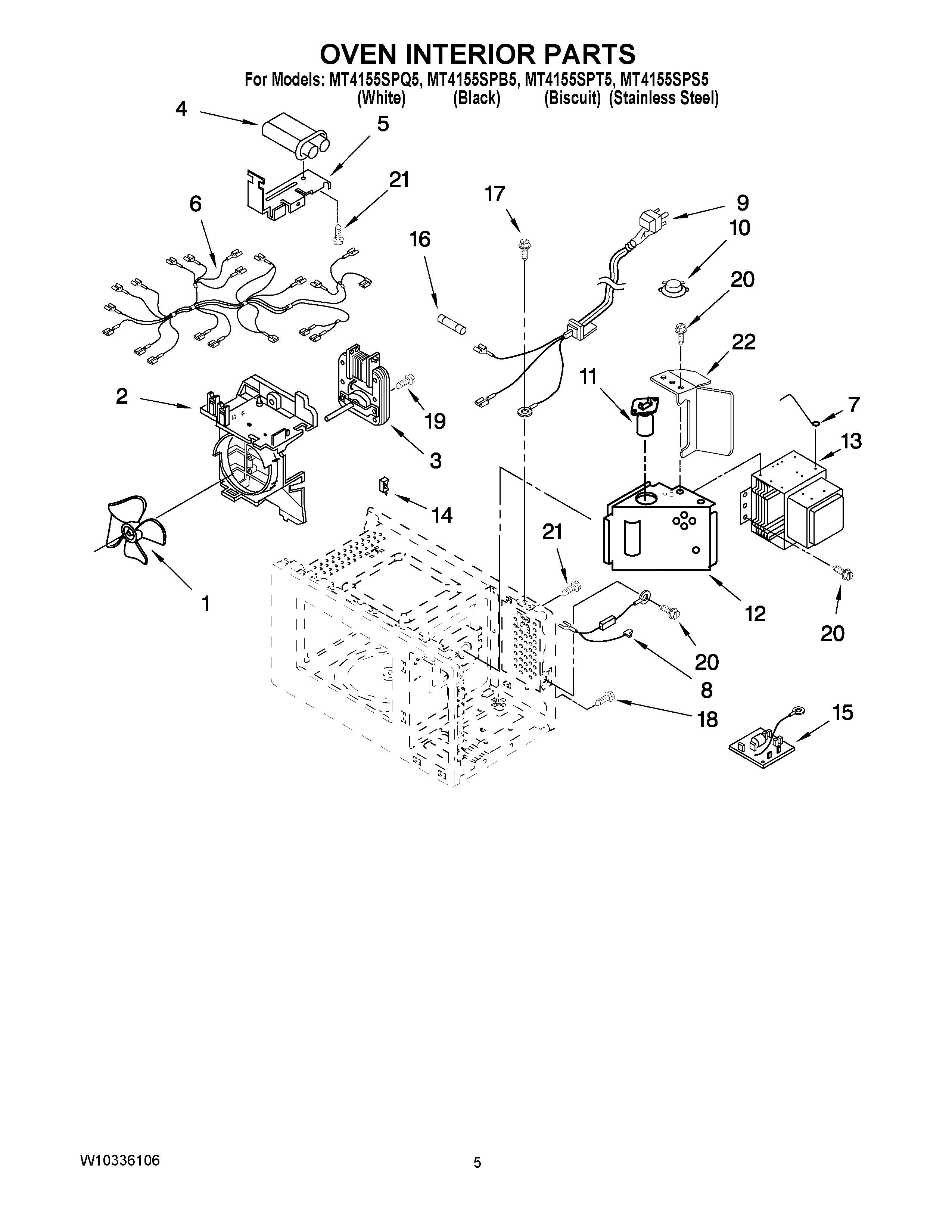

MT4155SPT5 05 – OVEN INTERIOR PARTS

MT4155SPT5 05 – OVEN INTERIOR PARTS

Written by

in

MT4155SPT5 05 – OVEN INTERIOR PARTS

Products

PositionProduct
1Blade, Fan
2Guide, Suction
3Motor, Fan
4WP8184813 Whirlpool Microwave Magnetron Capacitor
5H.V.C Bracket
6W10329752 Whirlpool Microwave Wire Harness
7Bracket, Support
8WP8205489 Whirlpool Microwave Voltage Wire
9W10329906 Whirlpool Microwave Power Cord
10Thermostat
11Lamp, Baseless
12Duct, Air
13W10859575 Whirlpool Magnetron
14Holder
15FILTER, NOISE
16WP8183507 Whirlpool Microwave Fuse
17Screw
18Screw
19Screw
204344826 Whirlpool Refrigerator Screw
21Screw
22Bracket
