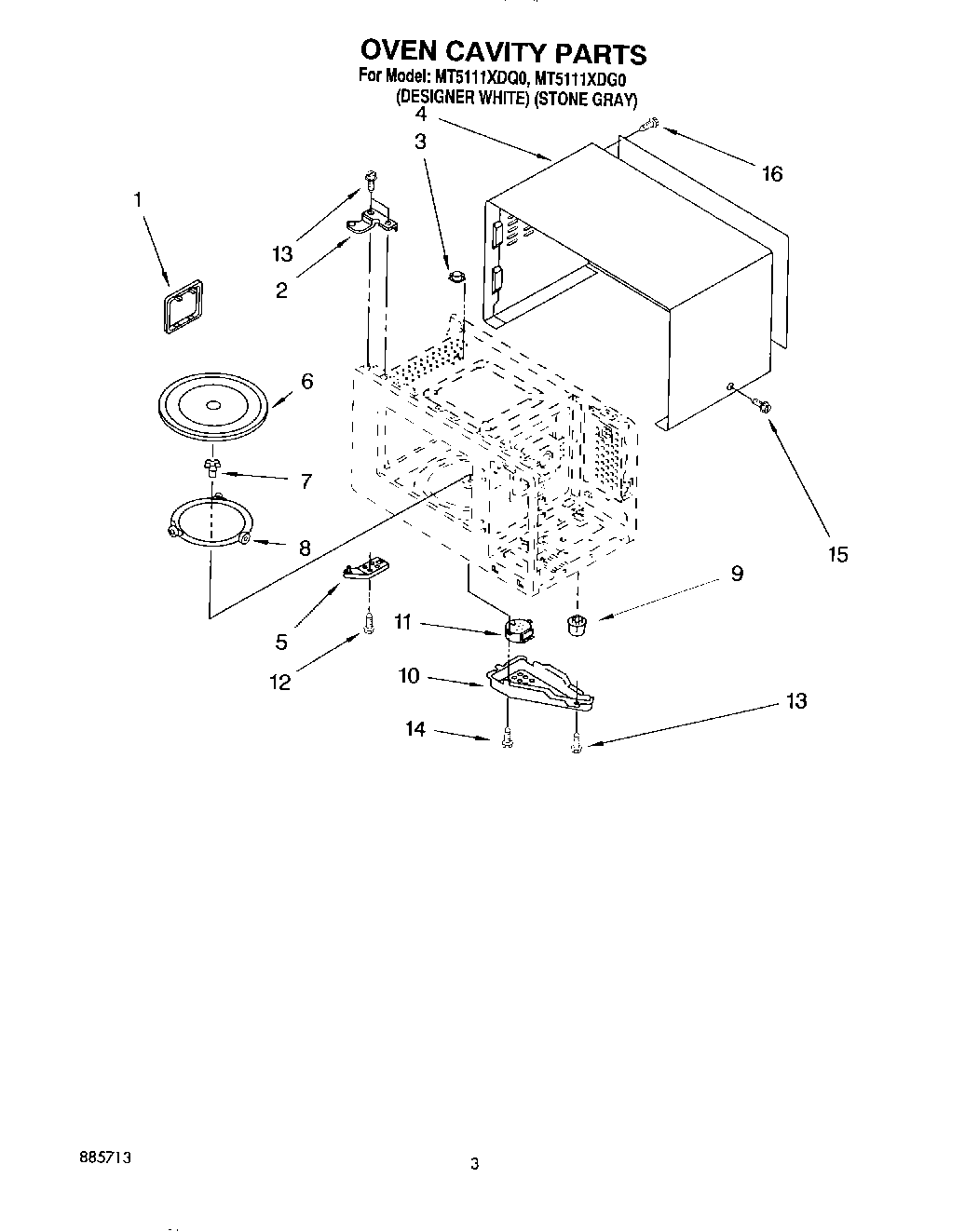

MT5111XDG0 03 – OVEN CAVITY

Products

Position	Product
1	Canopy
2	Plate, Hinge
3	Thermostat
4	Outer Case (Gray Model)
4	Outer Case (White Model)
5	Plate, Hinge
6	WP8172138 Whirlpool Microwave Cook Tray
7	Shaft, Turntable
8	Rotating Ring Ass`y
9	Leg (4)
10	Cover, Motor
11	Motor, Synchronous
12	Screw
13	4344826 Whirlpool Refrigerator Screw
14	Screw
15	Screw
15	W11245710 Whirlpool Refrigerator Screw
16	W11380570 Whirlpool Microwave Screw
