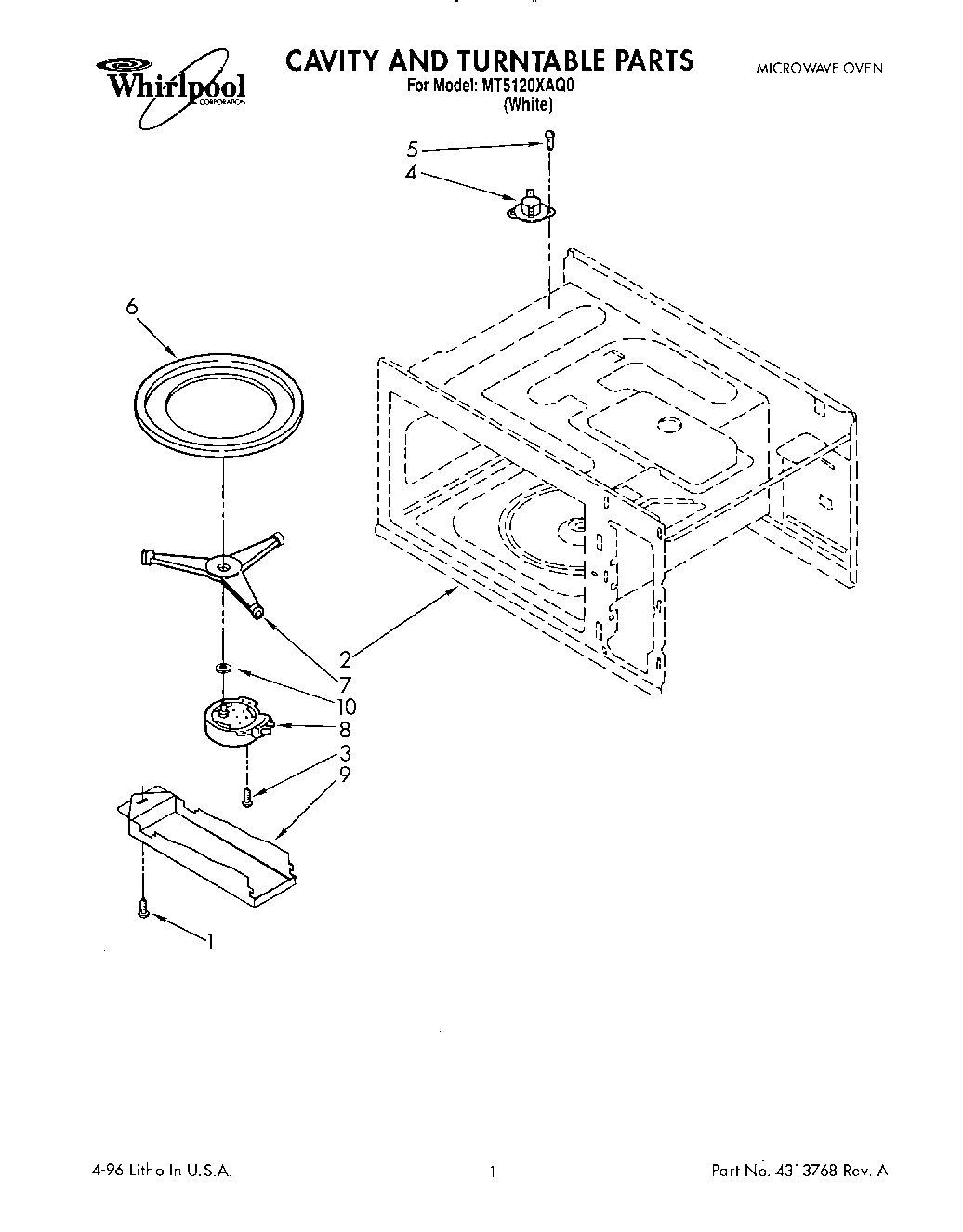

MT5120XAQ0 01 – CAVITY AND TURNTABLE, LIT/OPTIONAL

Products

Position	Product
	Tech Sheet
	Use And Care Guide
1	Screw
2	Cavity, Oven (Not a Serviceable Part)
3	Screw
4	Fuse, Temp
5	Screw
6	WP8184775 Whirlpool Microwave Cooking Tray
7	Support, Turntable
8	Motor, Turntable
9	Cover, Motor
10	Cord Brown (1/2 Oz.)
10	Gasket, Turntable
10	261900 Whirlpool Microwave Spray
10	WPL 591014
10	1
10	Wire, 25` Roll (Red 14 Ga.)
10	Wire, 25`` Roll (White 14 GA.)
10	WP482338 Whirlpool Refrigerator Adhesive
10	242831 Whirlpool Oven Wire
10	WP261869 Whirlpool Microwave Paint
10	Wire (14 Ga. 150 c Blue)
10	Wire (14 Ga. 150 c Brown)
10	Wire (14 Ga. 150 c Green)
10	Wire (14 Ga. 150 c Orange)
10	Wire (14 Ga. 150 c Yellow)
10	Wire (12 Ga. 150 c Black)
10	18 Ga. 80~c Rating (Red)
10	Wire (14 Ga. 200 c Brown)
10	Wire, 25` Roll (Black 14 Ga.)
