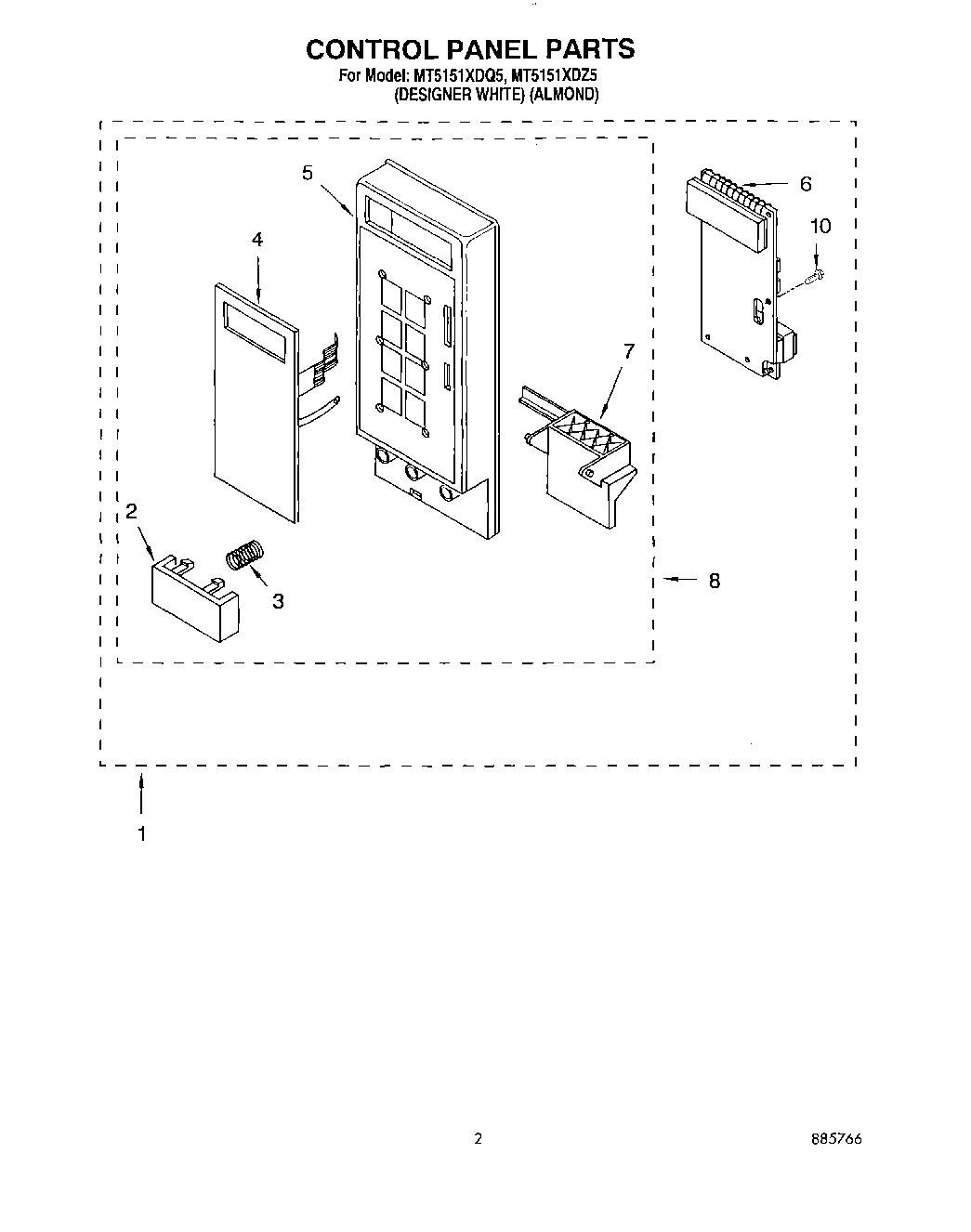

MT5151XDZ5 02 – CONTROL PANEL

Products

Position	Product
1	Controller Assembly (Not Serviceable) White Model & Wood Grain Model
2	Release Button (White Model)
2	Release Button (Almond Model)
3	WP4158178 Whirlpool Microwave Spring
4	Key Membrane (White Model)
4	Key Membrane (Almond Model)
5	Control Panel (White Model)
5	Control Panel (Almond Model)
6	P.C.B Sub Assembly
7	Lever, Release
8	Controller Sub Assembly (White Model)
8	Controller Sub Assembly (Almond Model)
10	Screw
