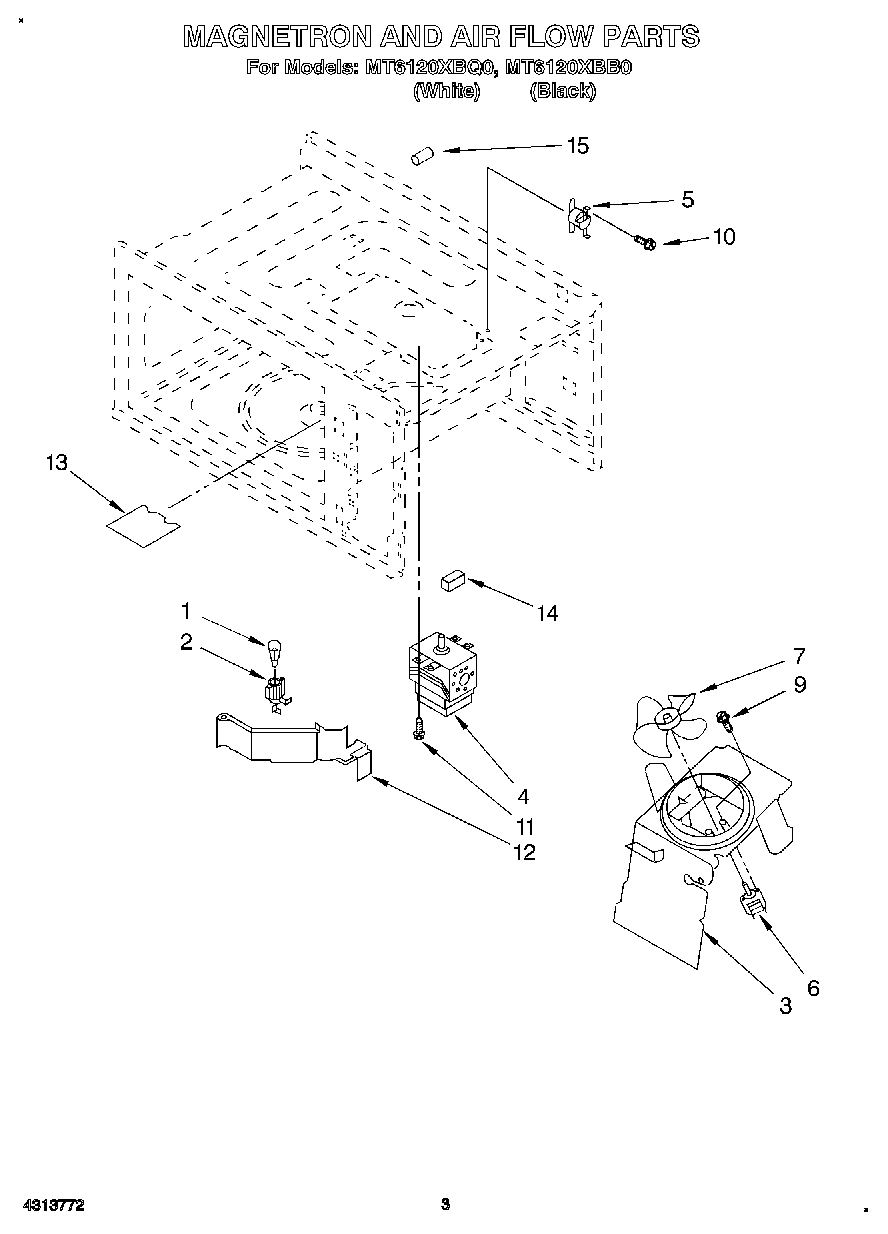

MT6120XBB0 02 – MAGNETRON AND AIR FLOWadmin2025-04-26T08:44:34+00:00MT6120XBB0 02 – MAGNETRON AND AIR FLOW
Products
| Position | Product |
|---|
| 1 | Lamp, Oven |
| 2 | Socket, Lamp |
| 3 | Duct, Fan |
| 4 | Magnetron |
| 5 | Fuse, Magnetron Temp |
| 6 | Motor, Fan |
| 7 | Blade, Fan |
| 8 | Cushion, Motor |
| 9 | Screw |
| 10 | Screw |
| 11 | Screw |
| 12 | Duct, Magnetron |
| 13 | Cover, Wave Guide |
| 14 | Shield, Magnetron |
| 15 | Spacer |
