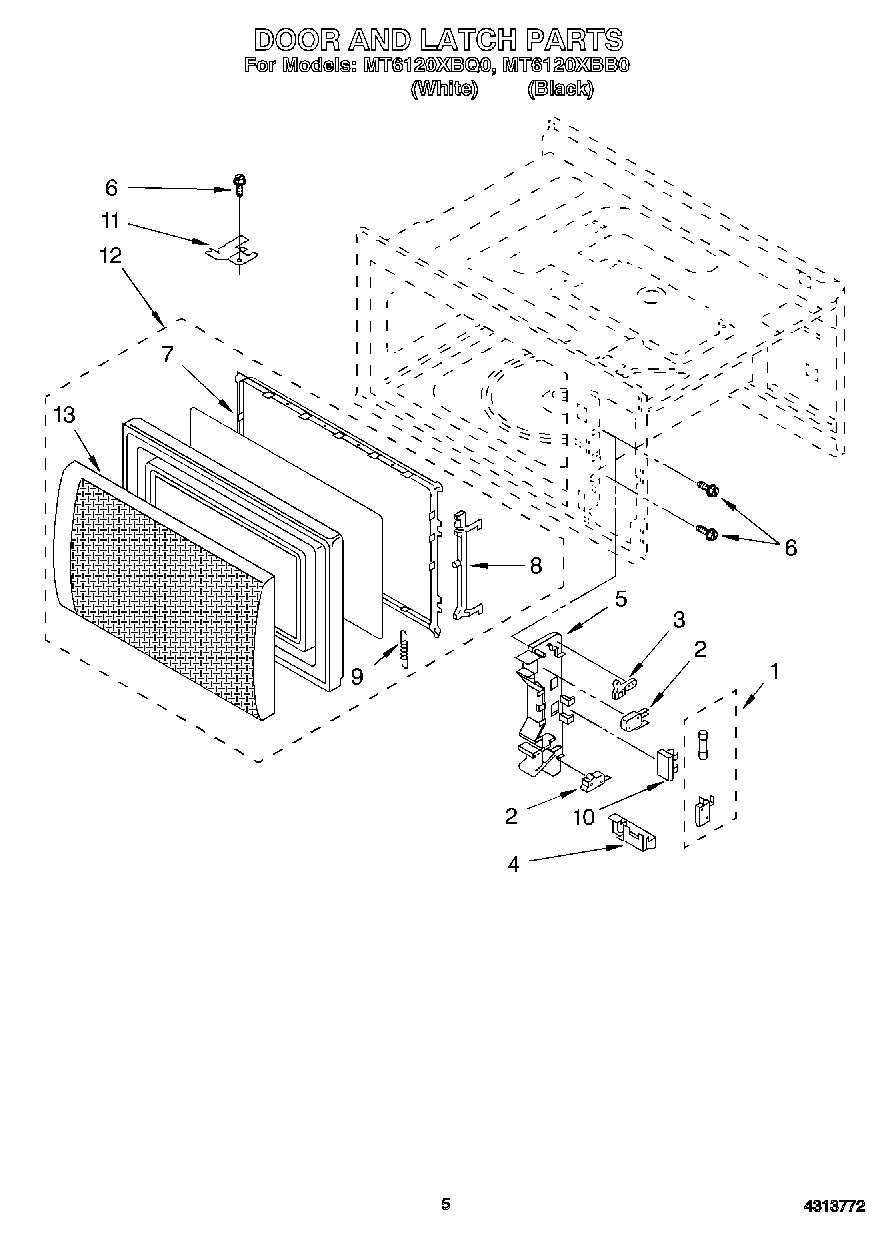

MT6120XBQ0 04 – DOOR AND LATCHadmin2025-04-26T08:44:09+00:00MT6120XBQ0 04 – DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | Switch and Fuse Assembly |
| 2 | 4392027 Whirlpool Microwave Primary Switch |
| 3 | Hook, Lever |
| 4 | Latch Lever |
| 5 | Latch Hook |
| 6 | SCREW |
| 7 | Choke Cover (White (MT6901XW1)) |
| 7 | Choke Cover |
| 8 | Latch, Door (White Model) |
| 8 | Latch, Door |
| 9 | Spring, Latch |
| 10 | Holder, Fuse |
| 11 | Hinge, Upper |
| 12 | Door, Complete (Black) |
| 12 | Door, Complete (White) |
| 13 | Assembly, Door Screen (Black) |
| 13 | Assembly, Door Screen (White) |
