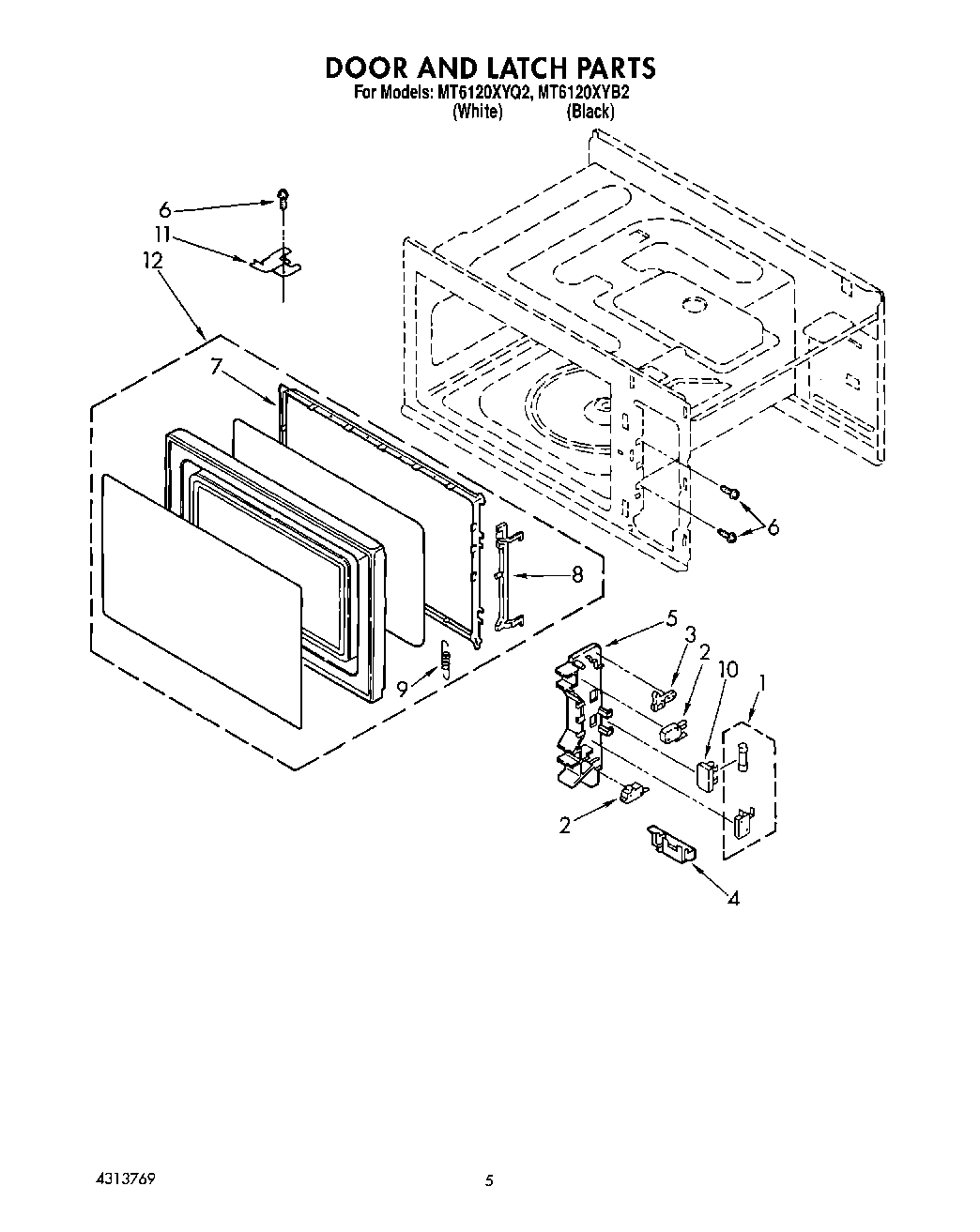

MT6120XYB2 04 – DOOR AND LATCH

Written by

Products

Position	Product
1	Switch and Fuse Assembly
2	4392027 Whirlpool Microwave Primary Switch
3	Hook, Lever
4	Latch Lever
5	Latch Hook
6	SCREW
7	Choke Cover
7	Choke Cover (White (MT6901XW1))
8	Latch, Door
8	Latch, Door (White Model)
9	Spring, Latch
10	Holder, Fuse
11	Hinge, Upper
12	Door, Complete (Black)
12	Door, Complete (White)
