MT6120XYQ1 04 – CABINET – Aparts

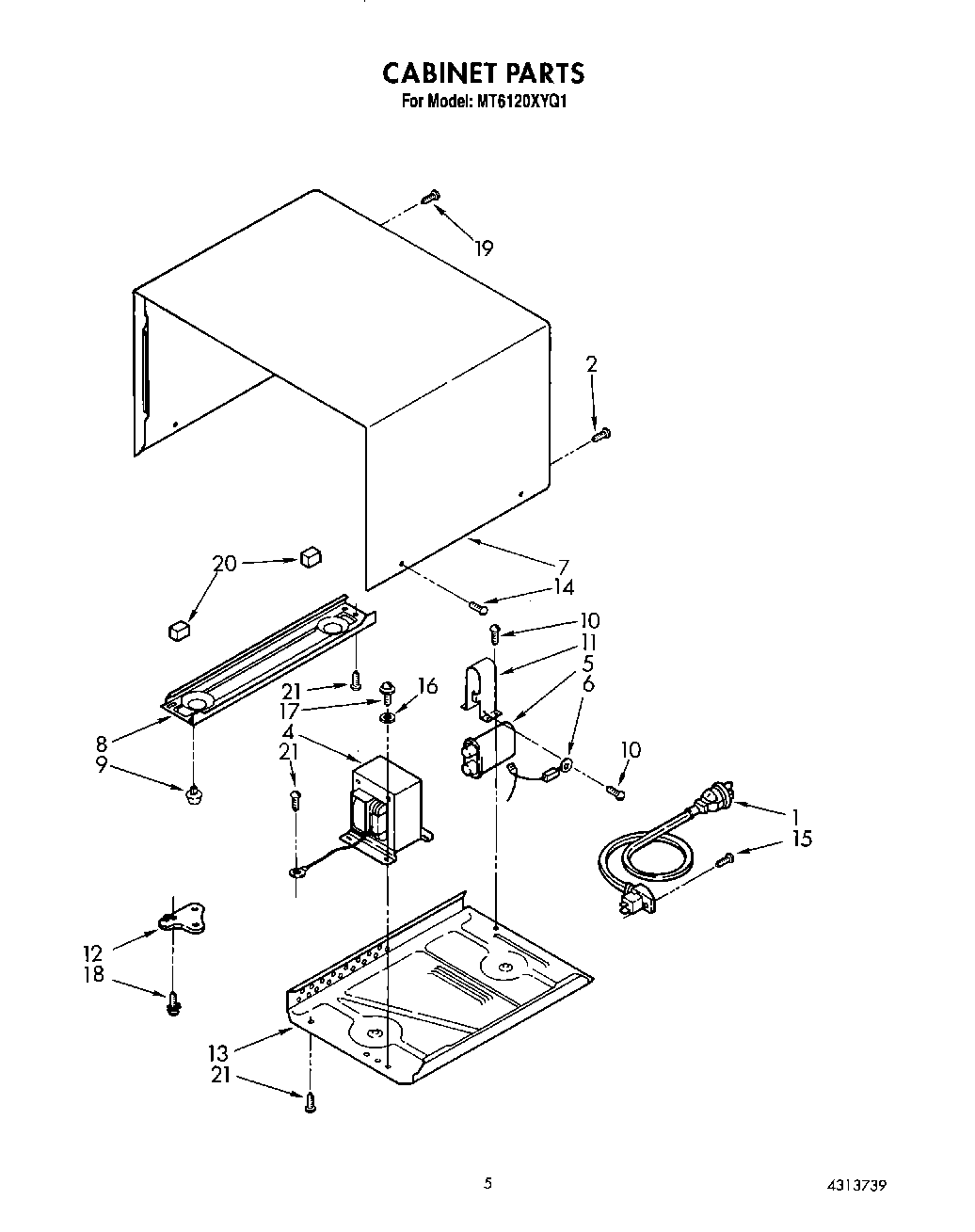

MT6120XYQ1 04 – CABINET

Products

Position	Product
1	Power Cord
2	Screw
4	Transformer
5	Capacitor
6	Rectifier
7	White
7	Outer Cabinet
8	Base Plate, Left Side
9	Foot (4)
10	Screw
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
14	Screw, 4 x 12 mm
14	Screw
15	Screw
16	Washer, Ground
17	Screw
18	Screw
19	Screw
20	Shield, Wire (2)
21	Screw
