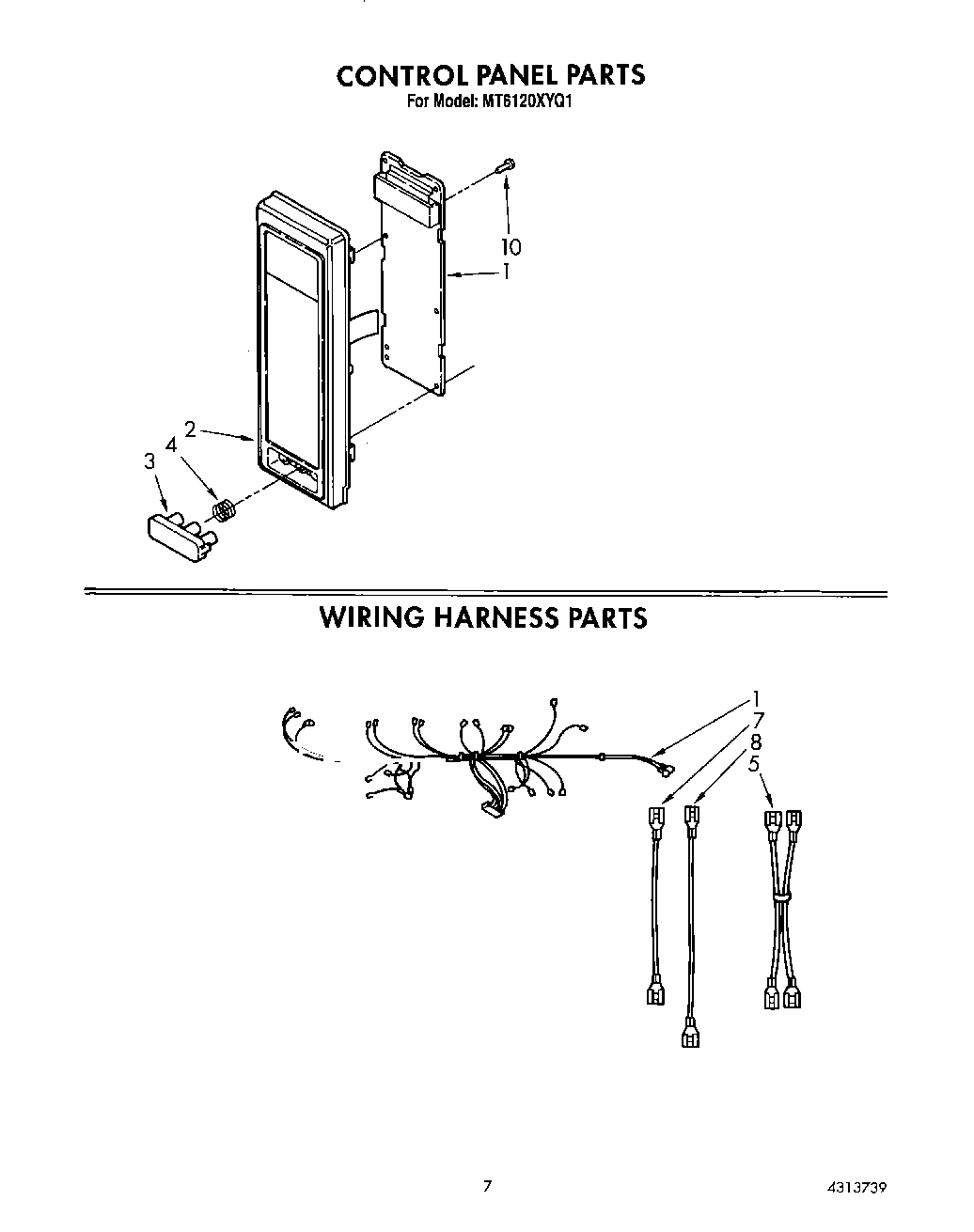

MT6120XYQ1 06 – CONTROL PANEL, WIRING HARNESS

MT6120XYQ1 06 – CONTROL PANEL, WIRING HARNESS

Written by

in

MT6120XYQ1 06 – CONTROL PANEL, WIRING HARNESS

Products

PositionProduct
1Microcomputer
1Harness, Main
2Control Panel (Black)
2Control Panel (White)
3Push Button
3Push Button (White (MT6901XW1))
48205529 Whirlpool Microwave Spring
5Harness, Thermal Protection
7H.V. Wire Magnetron To Capacitor
8H.V. Wire Transformer To Capacitor
10Screw
