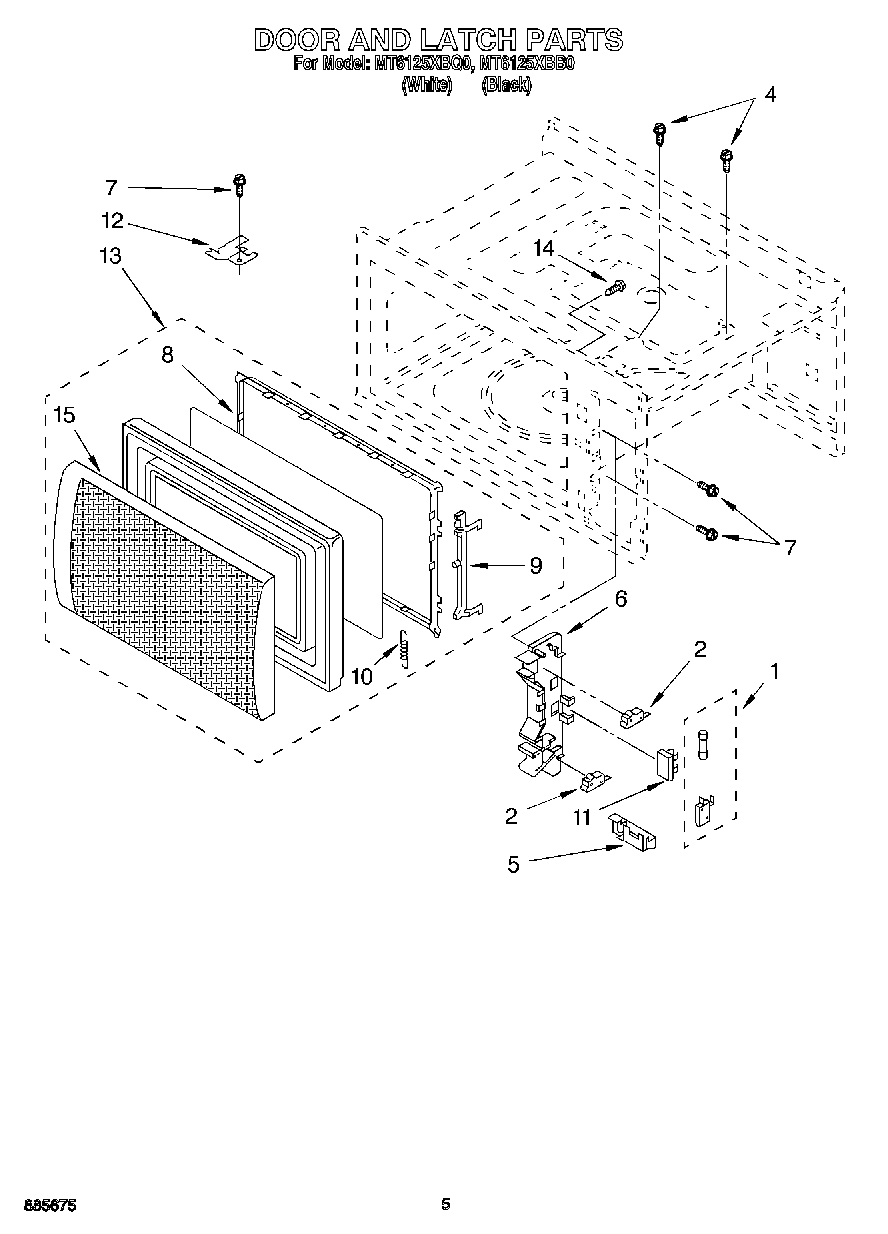

MT6125XBQ0 04 – DOOR AND LATCH

Products

PositionProduct
1Switch and Fuse Assembly
24392027 Whirlpool Microwave Primary Switch
4Screw
5Latch Lever
6Latch Hook
7SCREW
8Choke Cover (White (MT6901XW1))
8Choke Cover
9Latch, Door
9Latch, Door (White Model)
10Spring, Latch
11Holder, Fuse
12Hinge, Upper
13Door, Complete (Black)
13Door, Complete (White)
14Screw
15Assembly, Door Screen (Black)
15Assembly, Door Screen (White)
