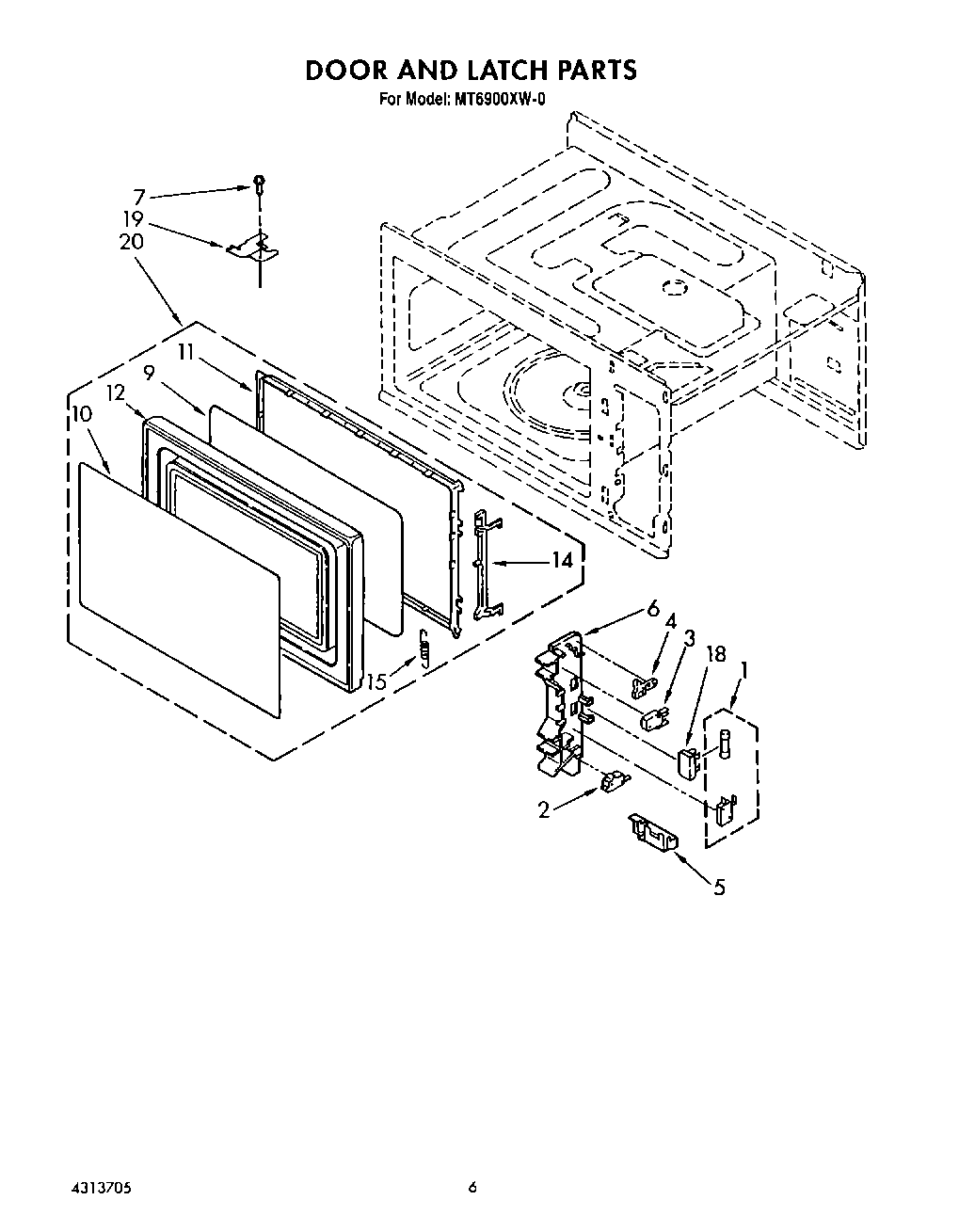

MT6900XW0 05 – DOOR AND LATCH

Written by

Products

Position	Product
1	Switch and Fuse Assy.
3	4392027 Whirlpool Microwave Primary Switch
4	Hook, Lever
5	Latch Lever
6	Latch Hook
7	Screw, 4 x 14 mm
9	Seal, Door (Not a Serviceable Part)
10	Panel, Door
11	Choke Cover
12	Frame, Door (Not Serviceable)
14	Latch, Door
15	Spring, Latch
18	Holder, Fuse
19	Hinge, Upper
20	Door, Complete (Black (MT6900XW1))
