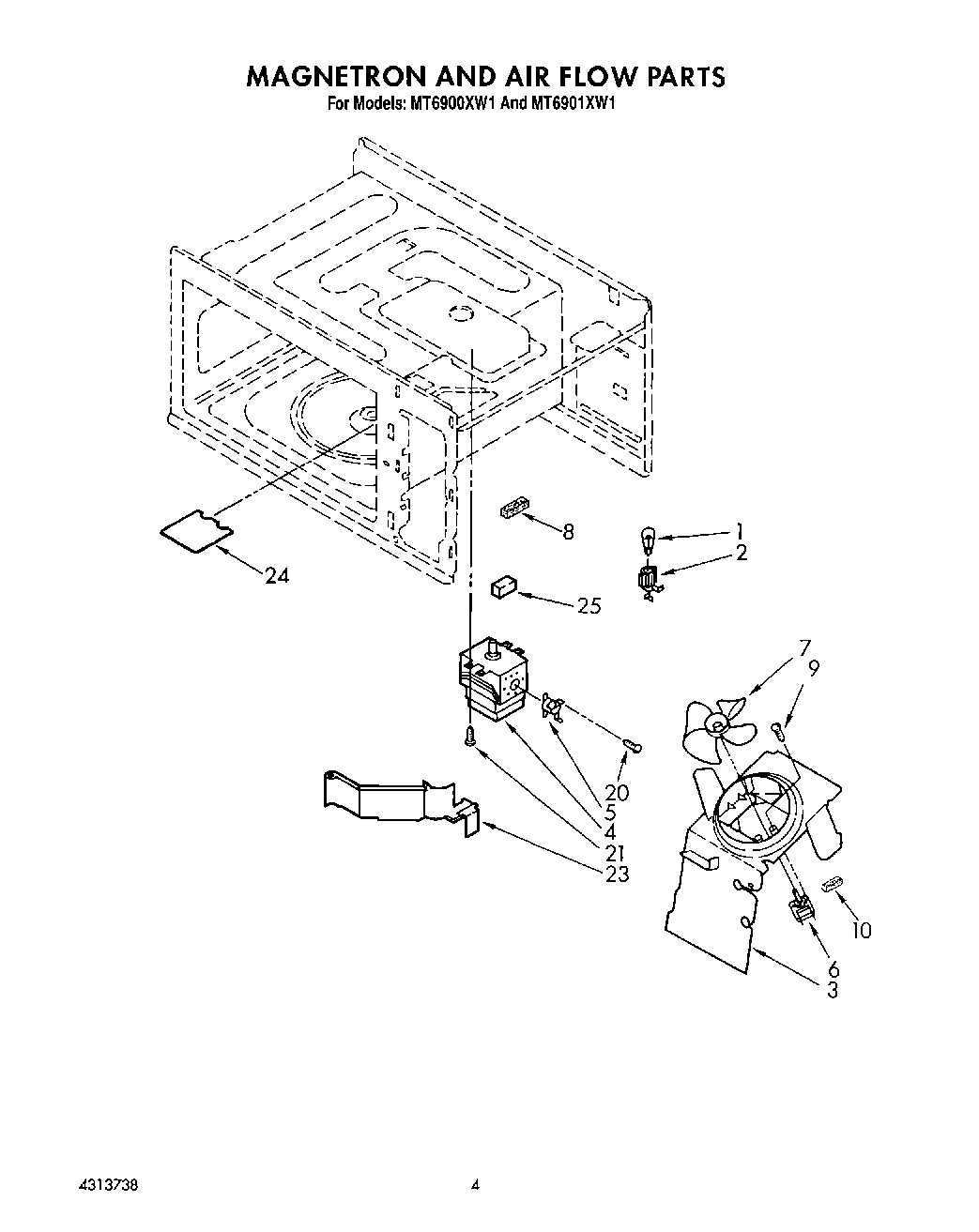

MT6900XW1 03 – MAGNETRON AND AIR FLOW

MT6900XW1 03 – MAGNETRON AND AIR FLOW

Written by

in

MT6900XW1 03 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Lamp, Oven
2Socket, Lamp
3Duct, Fan
4Magnetron
5Fuse, Magnetron Temp
6Motor, Fan
7Blade, Fan
8Cushion, Knife Protector
9Screw
10Cushion, Motor
20Screw
21Screw
23Duct, Magnetron
24Cover, Wave Guide
25Shield, Magnetron
