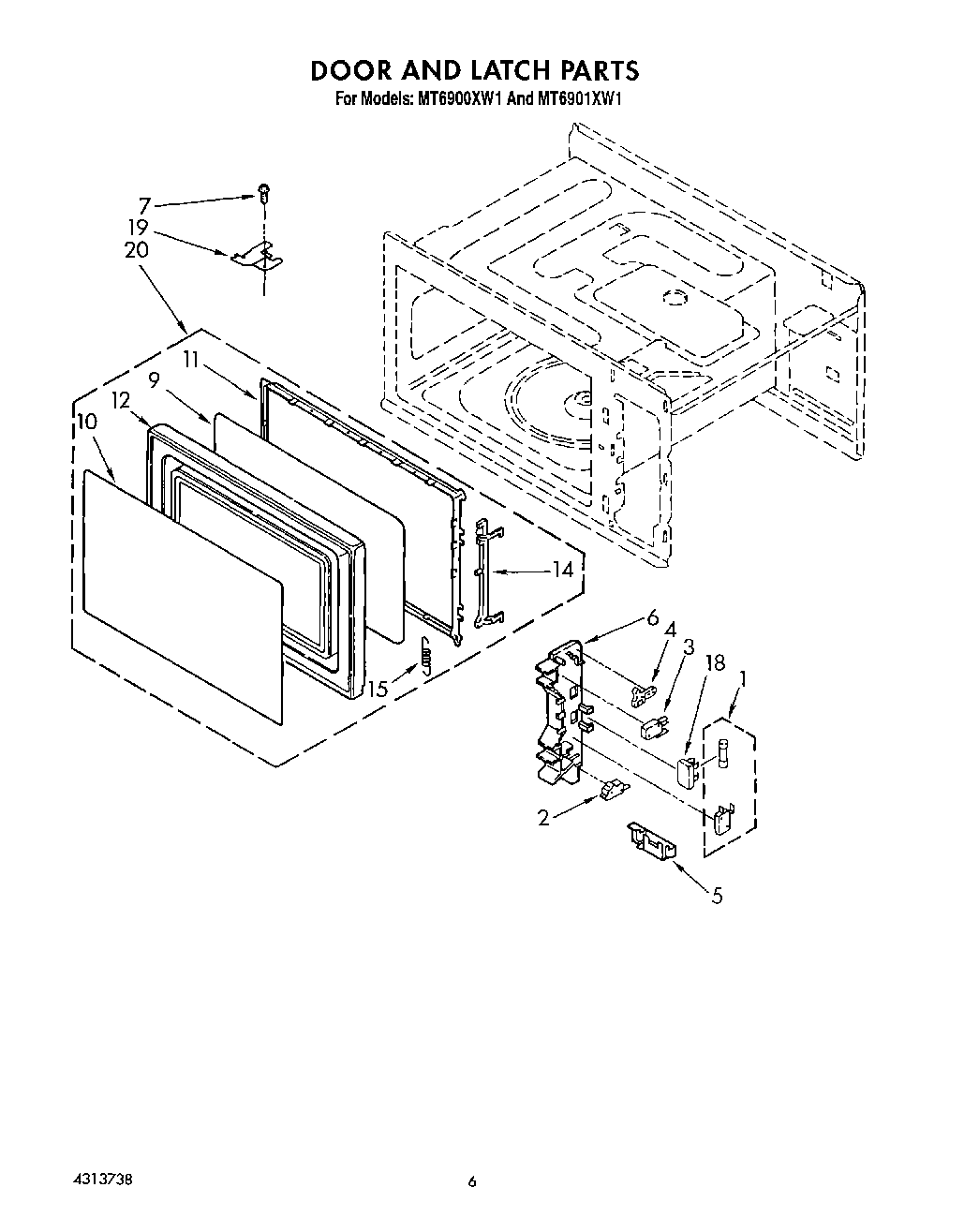

MT6900XW1 05 – DOOR AND LATCH

Products

Position	Product
1	Switch and Fuse Assy.
3	4392027 Whirlpool Microwave Primary Switch
4	Hook, Lever
5	Latch Lever
6	Latch Hook
7	Screw, 4 x 14 mm
9	Seal, Door (Not a Serviceable Part)
10	Panel, Door
11	Choke Cover
11	Choke Cover (White (MT6901XW1))
12	Frame, Door (Not Serviceable)
14	Latch, Door (White Model)
14	Latch, Door
15	Spring, Latch
18	Holder, Fuse
19	Hinge, Upper
20	Door, Complete (Black (MT6900XW1))
20	Door, Complete (White (MT6901XW1))
