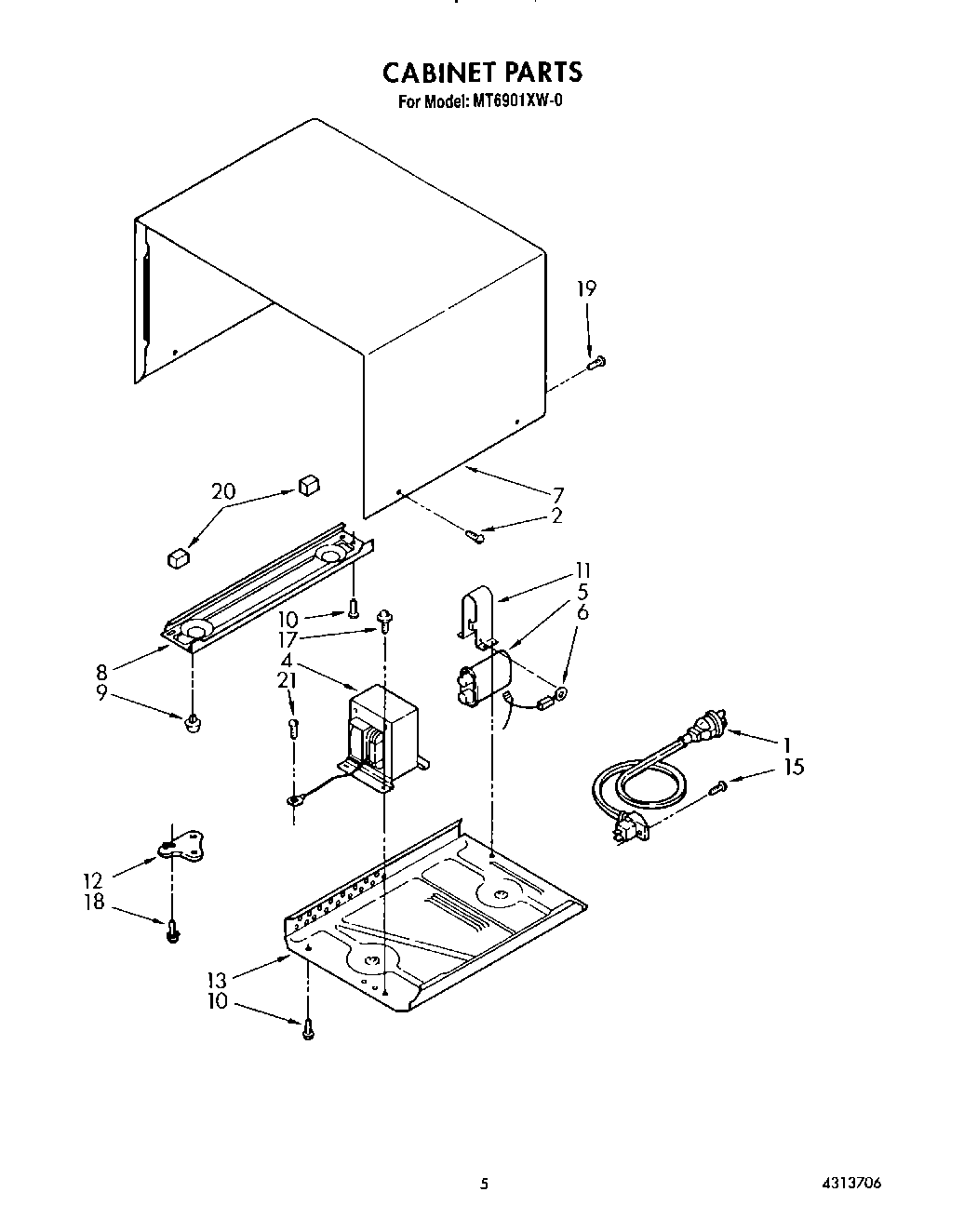

MT6901XW0 04 – CABINET

Products

Position	Product
1	Power Cord
2	Screw
4	Transformer
5	Capacitor
6	Rectifier
7	White
8	Base Plate, Left Side
9	Foot (4)
10	Screw
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
15	Screw
17	Screw
18	Screw
19	Screw
20	Shield, Wire (2)
21	Screw
