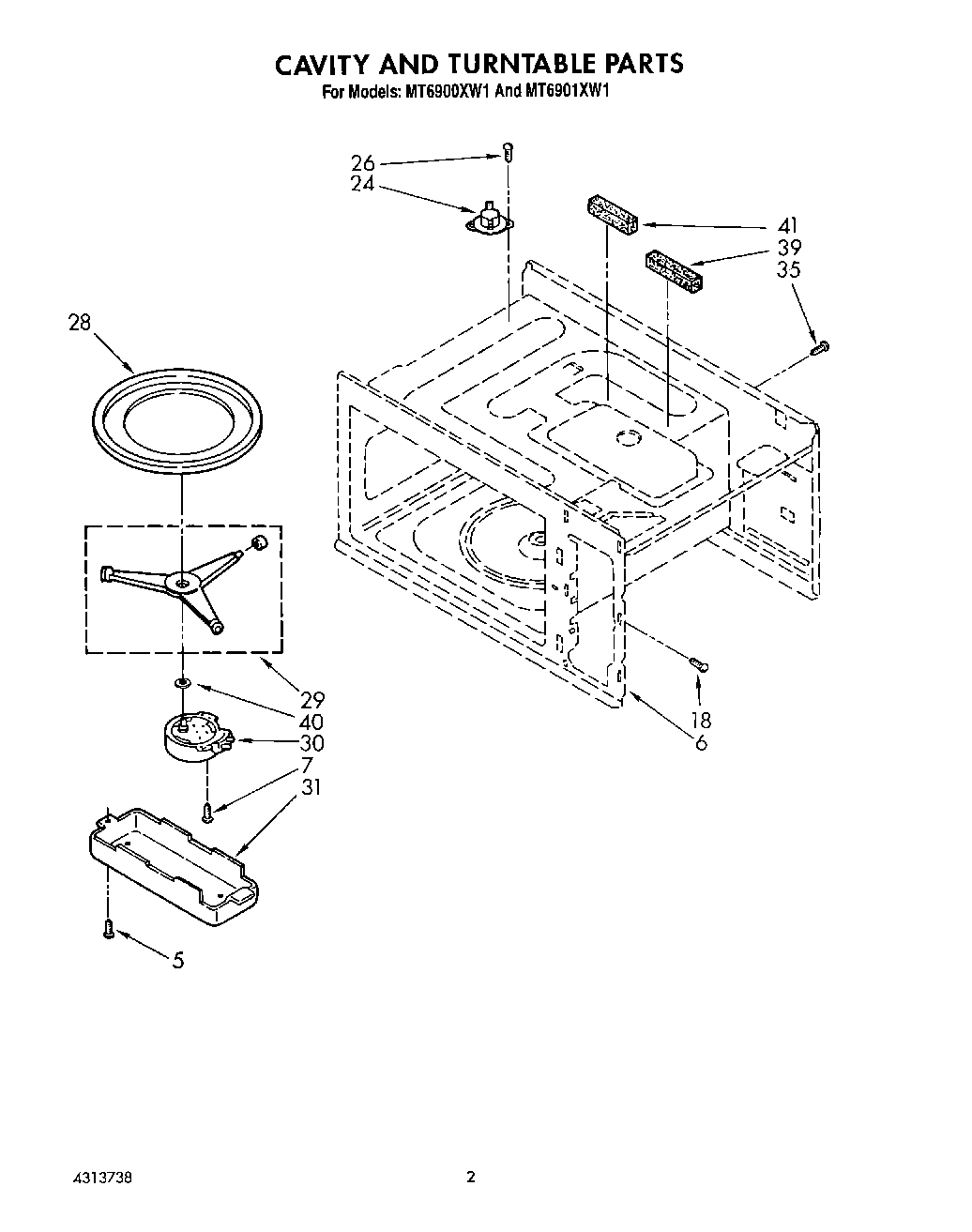

MT6901XW1 02 – CAVITY AND TURNTABLE, LIT/OPTIONALadmin2025-04-26T08:44:38+00:00MT6901XW1 02 – CAVITY AND TURNTABLE, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Built In Kit (Trim Kit) |
| List, Repair Parts |
| Tech Sheet |
| Manual, Operation |
| Label, Menu |
| Built In Kit (Black (MT6900XW1) (For Use Over Non Heat Source)) |
| 5 | Screw |
| 6 | Cavity, Oven (Not a Serviceable Part) |
| 7 | Screw |
| 18 | SCREW |
| 24 | Fuse, Temp |
| 26 | Screw |
| 28 | WP8184775 Whirlpool Microwave Cooking Tray |
| 29 | Support, Turntable |
| 30 | Motor, Turntable |
| 31 | Cover, Motor |
| 35 | Screw |
| 39 | Seal, Moisture |
| 40 | Gasket, Turntable |
| 41 | 261900 Whirlpool Microwave Spray |
| 41 | Cushion |
| 41 | WP261869 Whirlpool Microwave Paint |
| 41 | 242831 Whirlpool Oven Wire |
| 41 | WP482338 Whirlpool Refrigerator Adhesive |
| 41 | Wire, 25`` Roll (White 14 GA.) |
| 41 | Wire, 25` Roll (Red 14 Ga.) |
| 41 | Wire, 25` Roll (Black 14 Ga.) |
| 41 | Wire (14 Ga. 150 c Yellow) |
| 41 | Wire (12 Ga. 150 c Black) |
| 41 | WPL 591014 |
| 41 | Wire (14 Ga. 150 c Green) |
| 41 | Wire (14 Ga. 150 c Brown) |
| 41 | Wire (14 Ga. 150 c Blue) |
| 41 | 1 |
| 41 | Wire (14 Ga. 200 c Brown) |
| 41 | 18 Ga. 80~c Rating (Red) |
| 41 | Cord Brown (1/2 Oz.) |
| 41 | Wire (14 Ga. 150 c Orange) |
