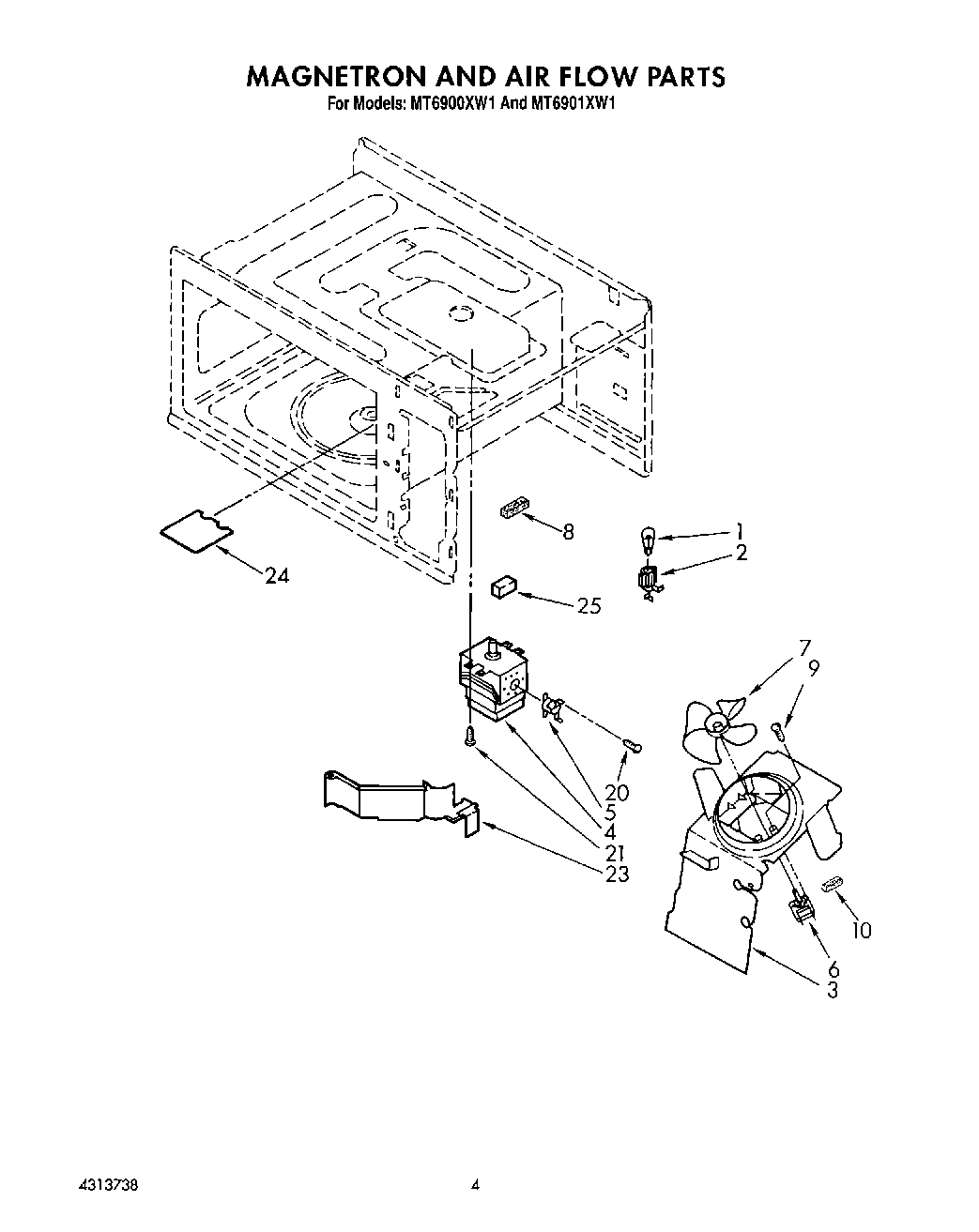

MT6901XW1 03 – MAGNETRON AND AIR FLOW

MT6901XW1 03 – MAGNETRON AND AIR FLOW

Written by

in

MT6901XW1 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Lamp, Oven
2	Socket, Lamp
3	Duct, Fan
4	Magnetron
5	Fuse, Magnetron Temp
6	Motor, Fan
7	Blade, Fan
8	Cushion, Knife Protector
9	Screw
10	Cushion, Motor
20	Screw
21	Screw
23	Duct, Magnetron
24	Cover, Wave Guide
25	Shield, Magnetron
