MT7078XDQ0 05 – MAGNETRON & AIR FLOW
Written by
in

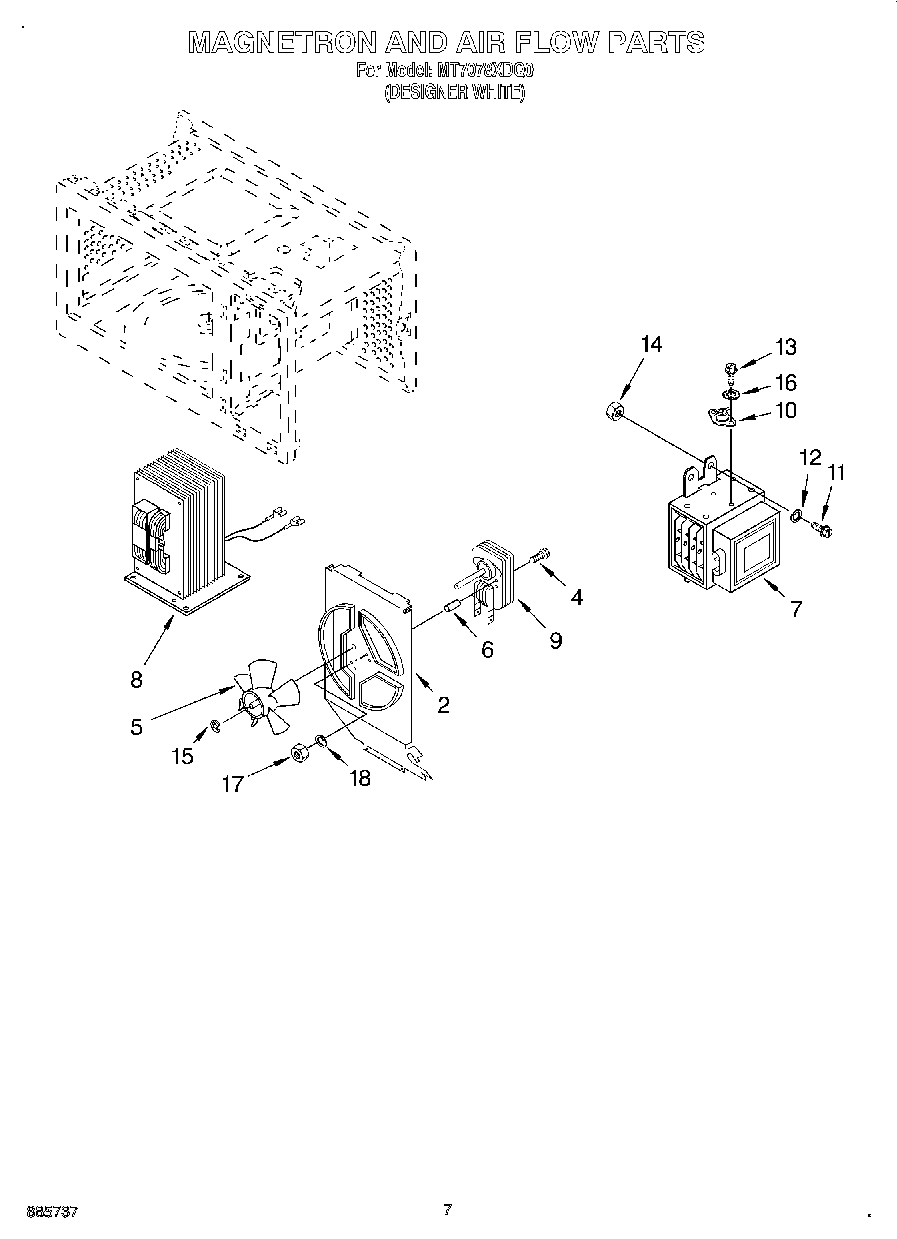

MT7078XDQ0 05 – MAGNETRON & AIR FLOW
Products
Position
Product
2
Support, Fan Motor
4
Screw
5
Blade, Fan
6
Sleeve
7
Magnetron
8
Transformer
9
Motor, Fan
10
Thermostat
11
8169480 Whirlpool Microwave Screw
12
WP8533914 Whirlpool Lock
13
Screw
14
Nut
15
E-Ring
16
Washer
17
Nut
18
Washer
←
