MT7078XDQ3 02 – DOOR
Written by
in

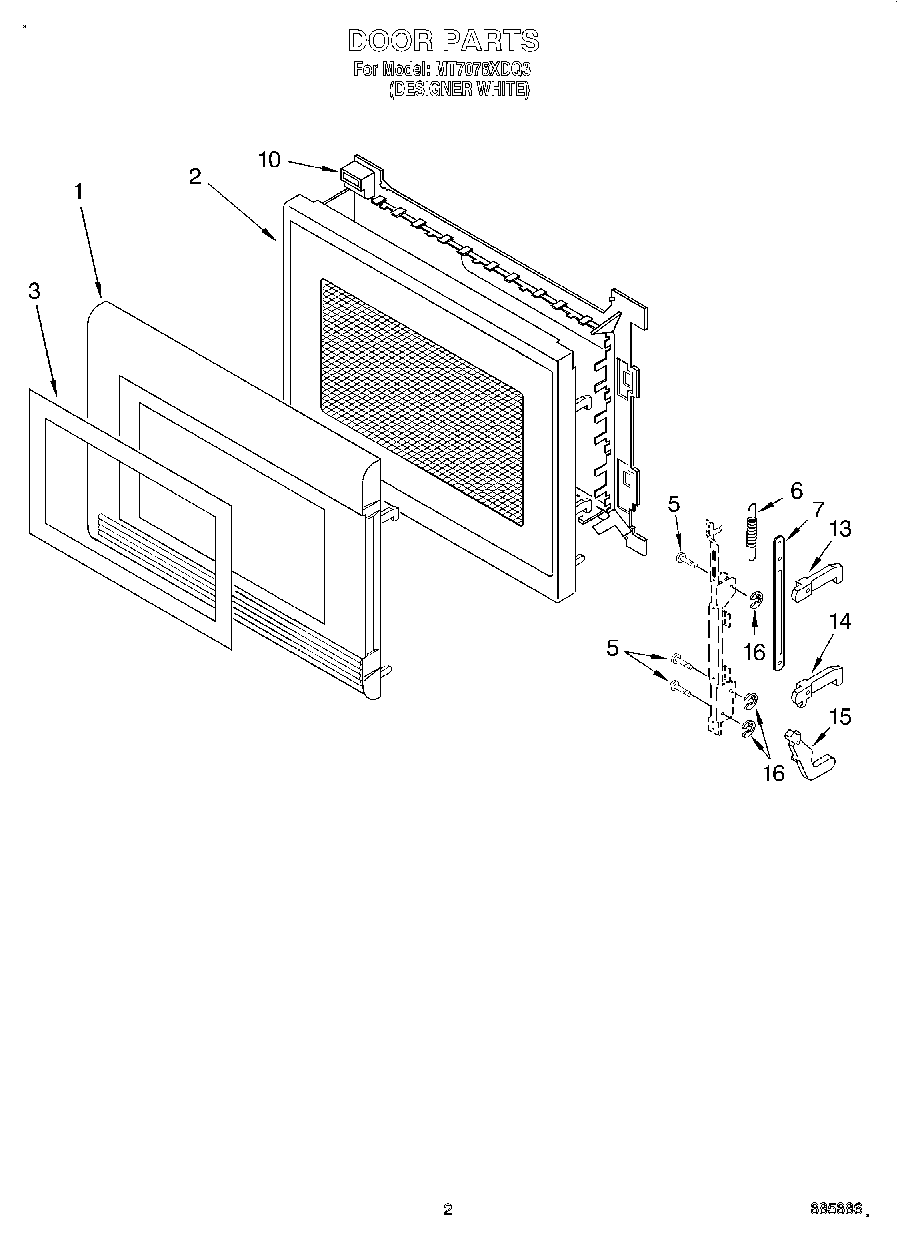

MT7078XDQ3 02 – DOOR
Products
| Position | Product |
|---|---|
| 1 | Door Body Assy |
| 2 | Plastic Door Cover |
| 3 | Front Plate |
| 5 | Latch Pivot |
| 6 | Spring |
| 7 | Hook Connector |
| 10 | Frame, Door |
| 13 | Latch, Upper |
| 14 | Latch, Lower |
| 15 | Pin, Door |
| 16 | E-Ring |
