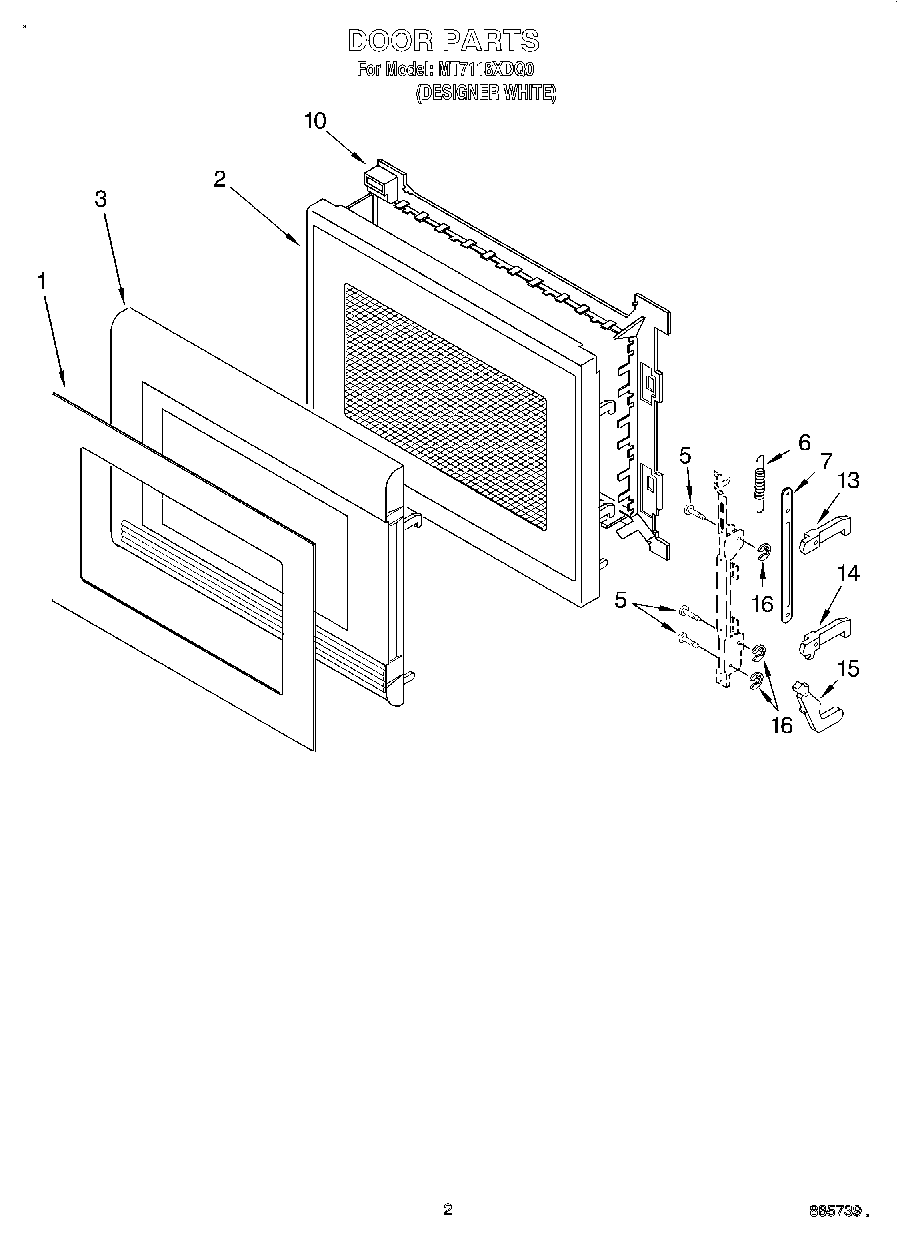

MT7118XDQ0 02 – DOOR
Products
| Position | Product |
|---|---|
| 1 | Plate, Front |
| 2 | Door Assembly |
| 3 | Cover, Door |
| 5 | Latch Pivot |
| 6 | Spring |
| 7 | Hook Connector |
| 10 | Frame, Door (White Model) |
| 13 | Latch, Upper |
| 14 | Latch, Lower |
| 15 | Pin, Door |
| 16 | E-Ring |
MT7118XDQ0 02 – DOOR
| Position | Product |
|---|---|
| 1 | Plate, Front |
| 2 | Door Assembly |
| 3 | Cover, Door |
| 5 | Latch Pivot |
| 6 | Spring |
| 7 | Hook Connector |
| 10 | Frame, Door (White Model) |
| 13 | Latch, Upper |
| 14 | Latch, Lower |
| 15 | Pin, Door |
| 16 | E-Ring |
